Brocade Communications Systems MLX Series Hardware Installation Guide

118 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a Brocade MLX-32 router
2
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.
4. Push the power supply front panel toward the back of the router to engage the backplane
connector.
5. Pull the release latch on the power supply front panel up to lock the power supply in place, and
screw the retaining screw into place.
6. Install a blank power supply faceplate into each empty slot.

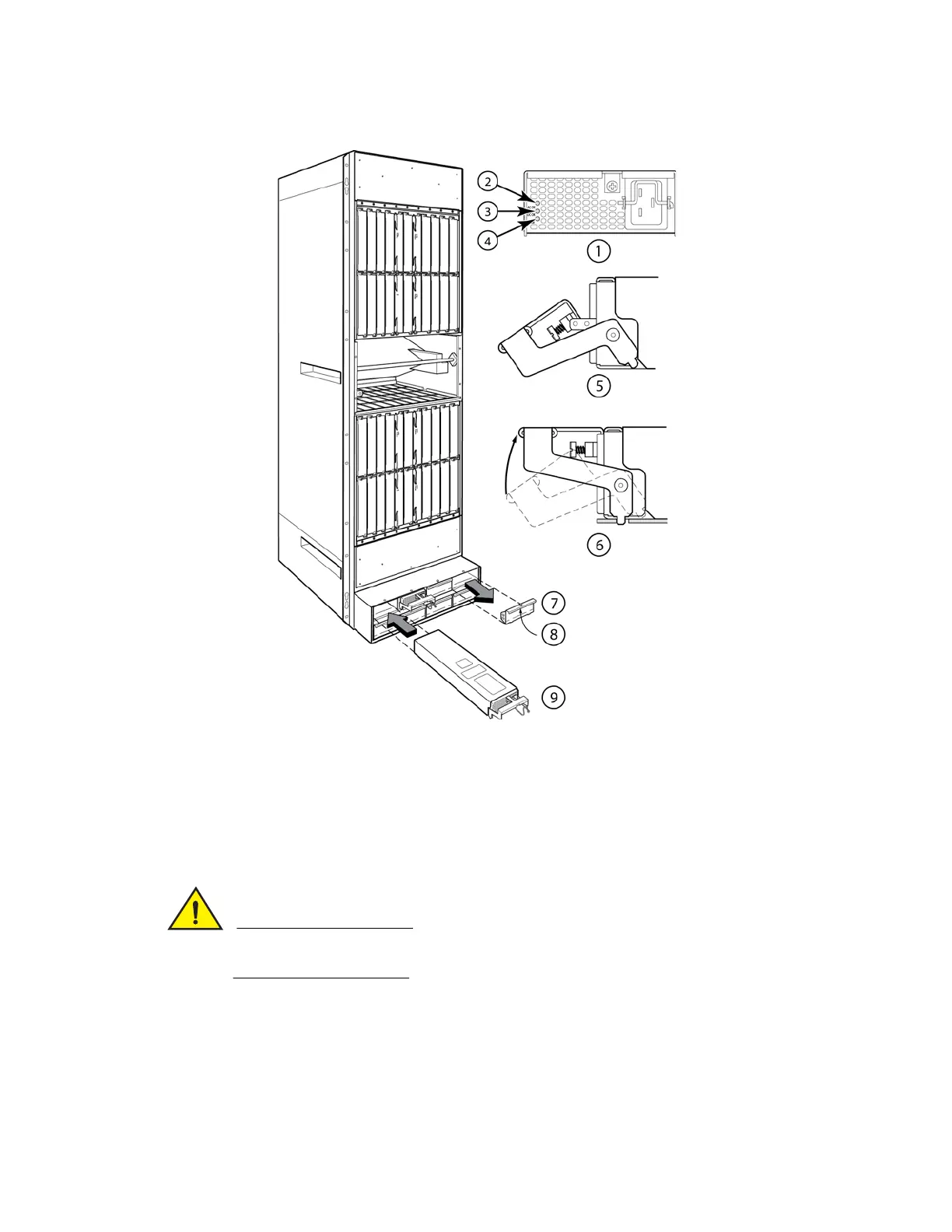

1 Power supply indicators 6 Latch handle locked
2 AC OK 7 Power supply blank cover
3 DC OK 8 Pull down on plunger to remove
4 ALM 9 Power supply
5 Latch handle open
