Replacing fan assemblies
7

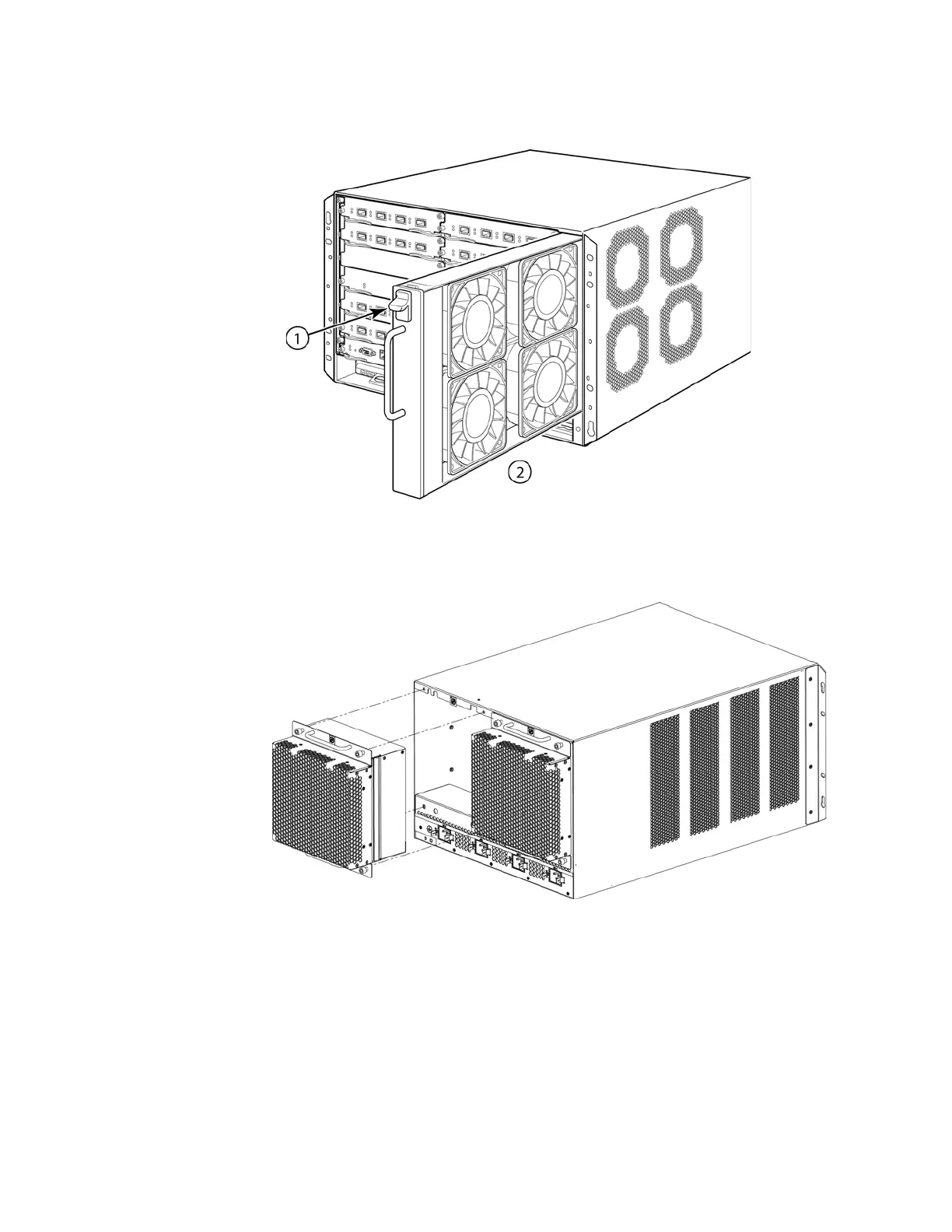

FIGURE 161 Replacing the fan assembly in a Brocade MLXe 8-slot router
3. Insert the new fan assembly into the fan slot and push the enclosure in until the faceplate is
flush with the router. Pushing the enclosure in seats the fan connector with the router
connector.
4. Tighten the four captive screws to secure the fan to the router.
5. Access the CLI, and enter the show chassis command to verify that the fans are operating
normally.
1 Latch release 2 Fan tray assembly
