Router modules
1
The output displays firmware Revision A (Rev A) for NIBI-16-FAN-EXH-A modules. Rev A
indicates that the router contains the required rear fan modules to support the
NI-MLX-1Gx48-T-A modules. The RPM value thresholds (LOW/MED/MED-HI/HI) are also
displayed for rear fan modules.
NOTE
If the router does not contain NIBI-16-FAN-EXH-A modules, the show chassis command will not
display Rev A for rear fan modules.
BR-MLX-40Gx4-M 4-port 40GbE module

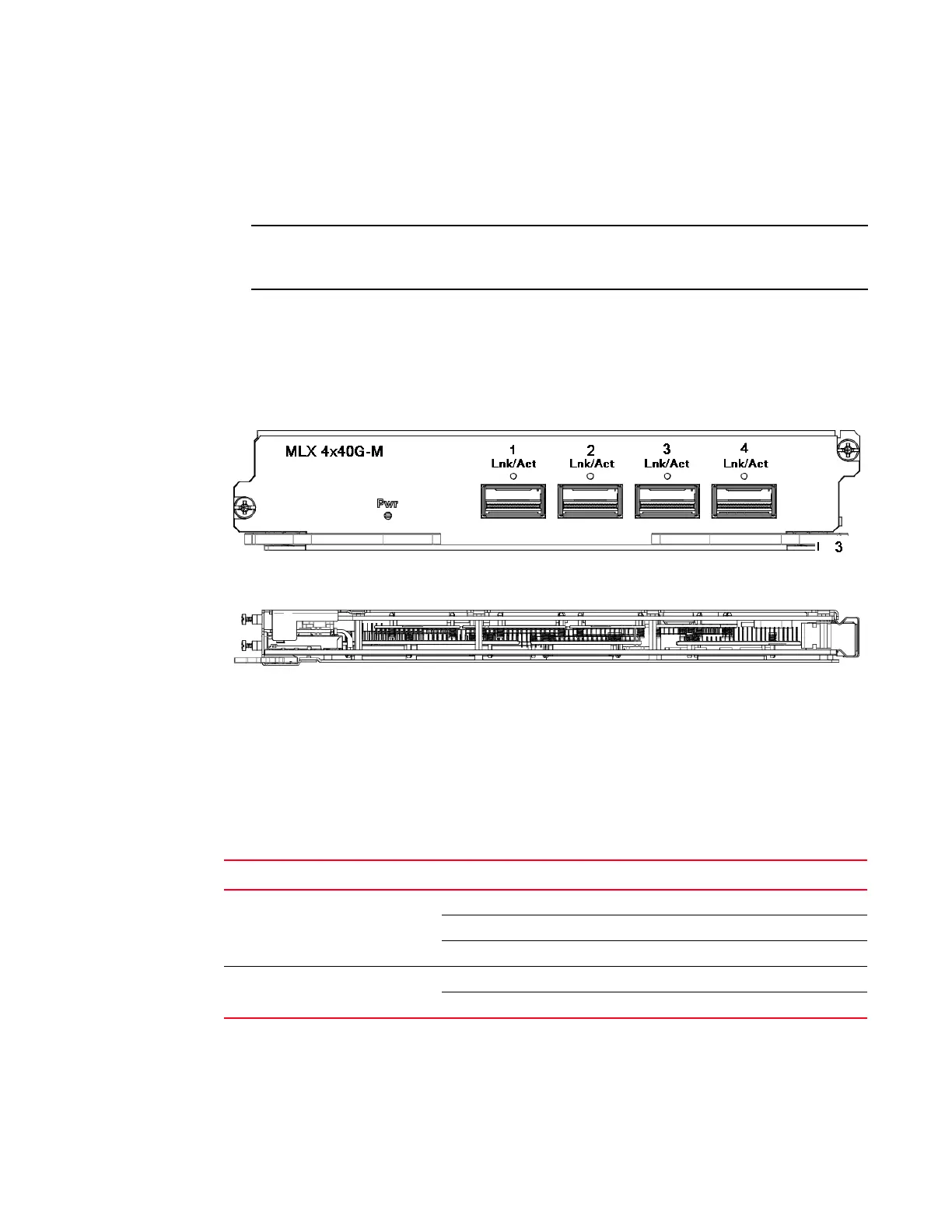

Figure 23 and Figure 24 shows the front panel for the BR-MLX-40Gx4-M interface module.
FIGURE 23 BR-MLX-40Gx4-M module front panel
FIGURE 24 BR-MLX-40Gx4-M module front panel side view
The front panel includes the following features:
• Name of the module.
• Number of ports and the type of ports.
• LED indicator for a port.
• LED indicator for module power.
Table 14 describes the BR-MLX-40Gx4-M module LEDs.
The Brocade MLXe 4-port 40 GbE (M) module includes Layer 2, IPv4/IPv6, MPLS and OpenFlow
features, supports 512K IPv4 routes in the Forwarding Information Base (FIB), and requires high
speed switch fabric modules and QSFP+ optics.
TABLE 14 BR-MLX-40Gx4-M module LEDs
LED Position State Meaning
Link or
Active
Above the ports On (solid) A link is established.
Blinking The port is transmitting and/or receiving.
Off A link is not established.
Power Left side of front panel On Module is powered on.
Off Module is powered off.
