38 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Router modules
1

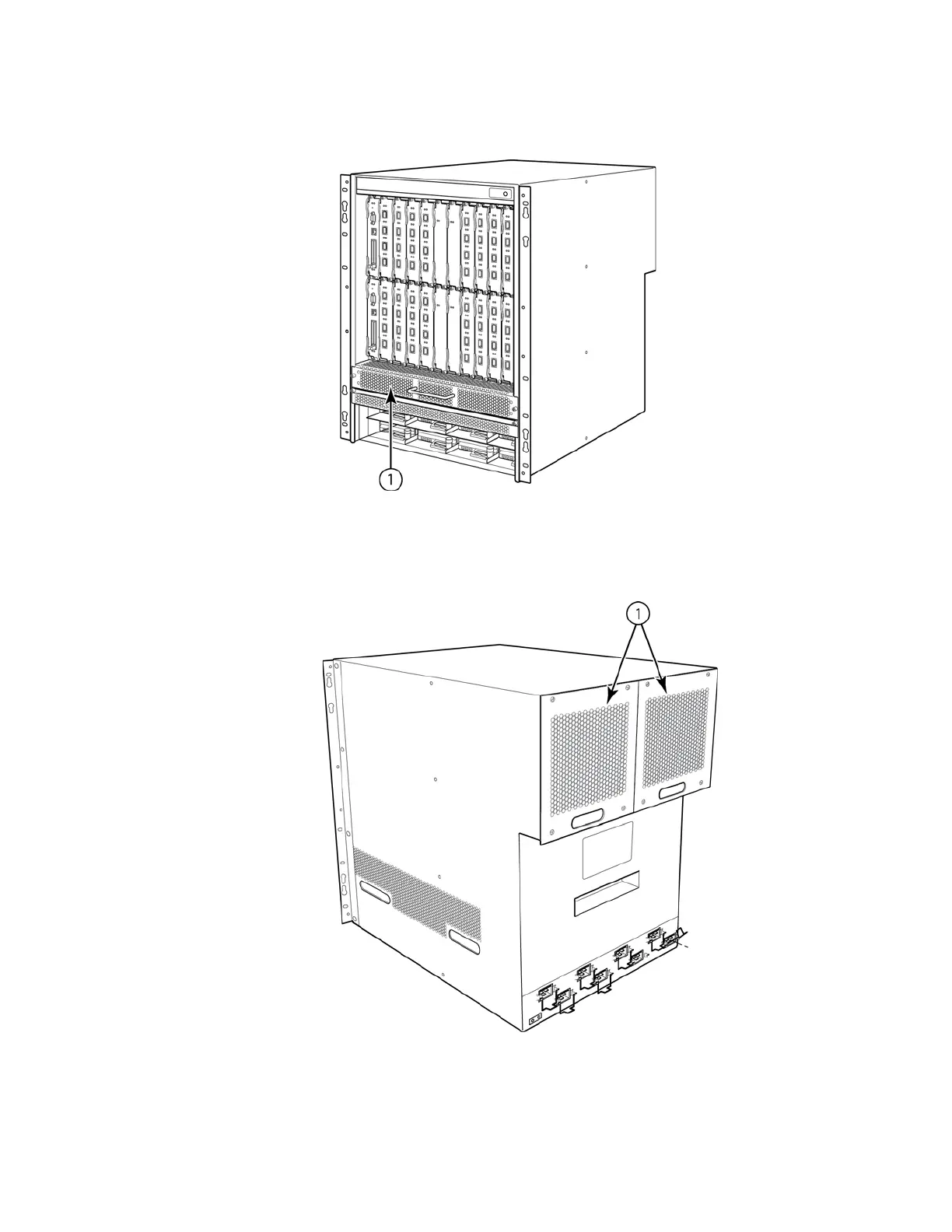

FIGURE 29 Rear fan location for Brocade MLX and NetIron XMR 16-slot routers
FIGURE 30 Rear fan locations for Brocade MLX and NetIron XMR 32-slot routers
1 Front fan assembly
1 Rear fan assemblies
