Installing a Brocade MLX-16 router
2
Follow these steps to install a power supply in a Brocade MLX-16 router.
1. Remove the power supply slot blank.
CAUTION
Empty power supply slots must be covered with slot blanks.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides on either side of the slot.

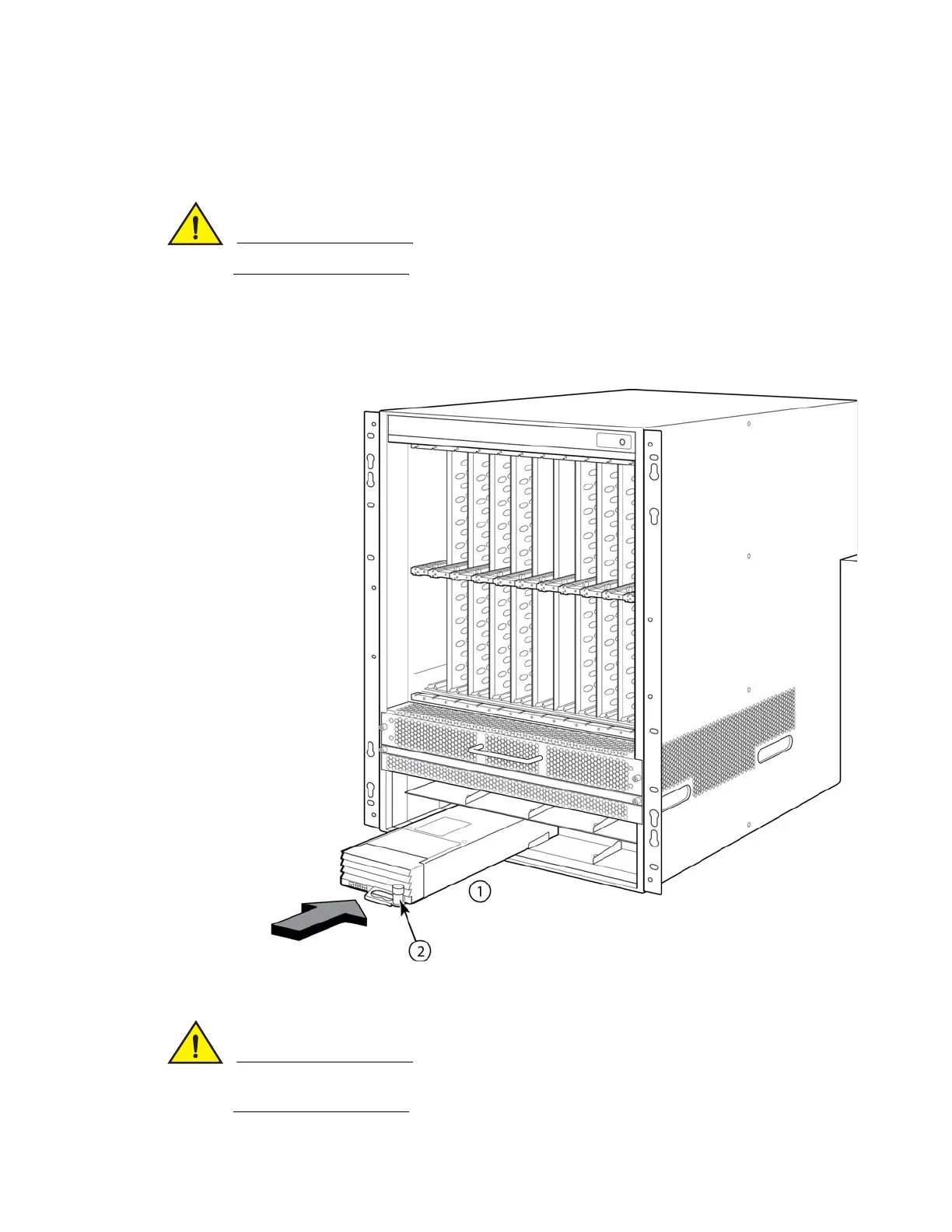

FIGURE 56 Installing a power supply in a Brocade MLX-16 router
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.
1 Power supply 2 Release latch
