Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 119
53-1002373-02
Installing a Brocade MLXe-32 router
2
Because you will need to use a mechanical lift to move and install the device, make sure you allow
enough space to operate the lift. You will also need at least two people to slide the router off the lift
and into the rack.
Once you have completed the preliminary installation preparations (refer to “Preliminary rack
mount installation steps” on page 112), follow these steps to mount your 32-slot router in a 4-post
rack or open cabinet.
1. Remove the factory-installed mounting brackets from the router chassis.
2. Attach the front right and left mounting brackets to the chassis using 12 8-32 Phillips flat head
screws (provided). Refer to Figure 84.

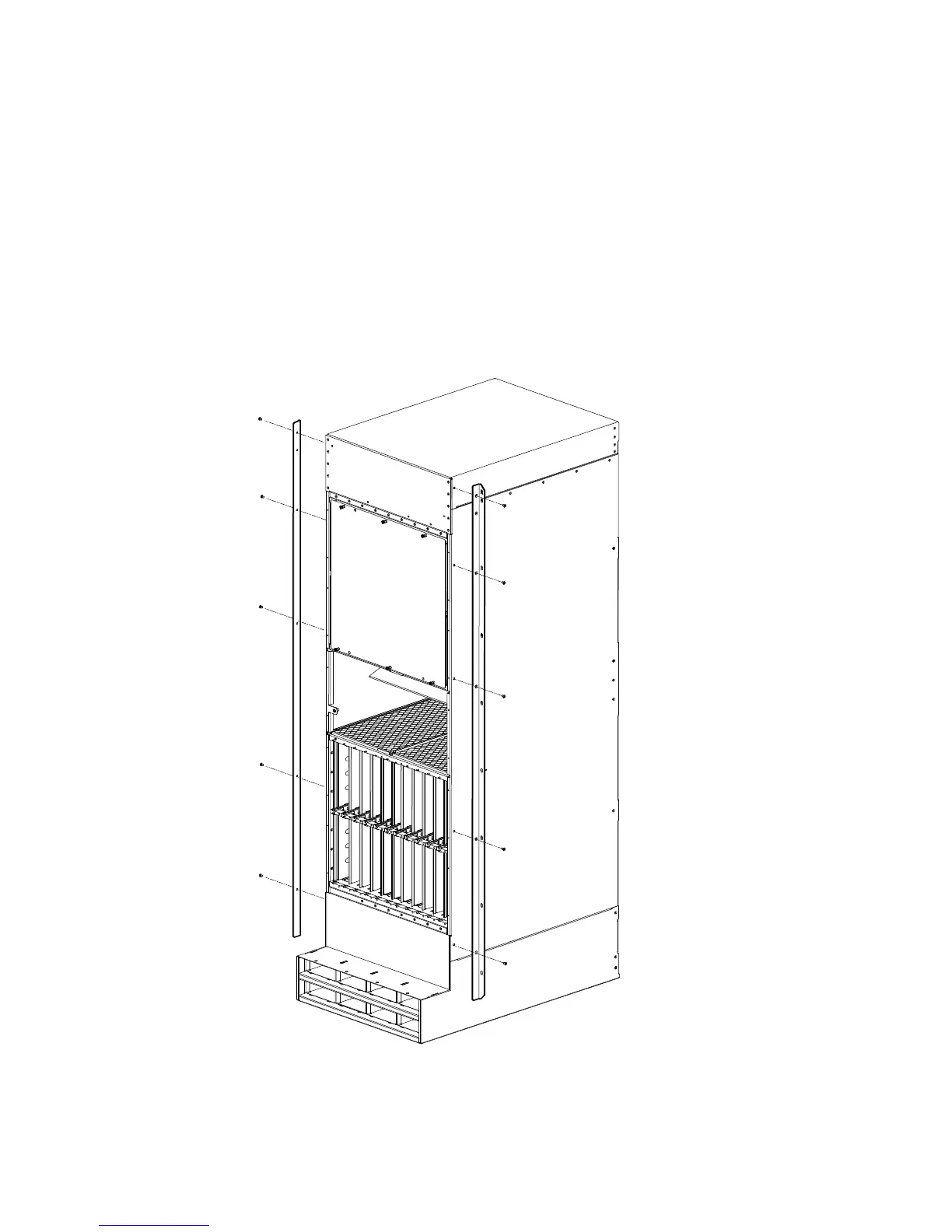

FIGURE 84 Attach front right and left mounting brackets to the router chassis
