Installing a Brocade MLXe-32 router
2
3. Adjust the telescoping rails to fit your rack. The rails can accommodate rack depths from 27 -
31 inches.
4. Attach the side rails to the front and back of the rack, using screws appropriate for your rack
type. (You must provide these screws). Refer to Figure 85.
NOTE
The narrow telescoping ends of the side rails should attached at the back of the rack.

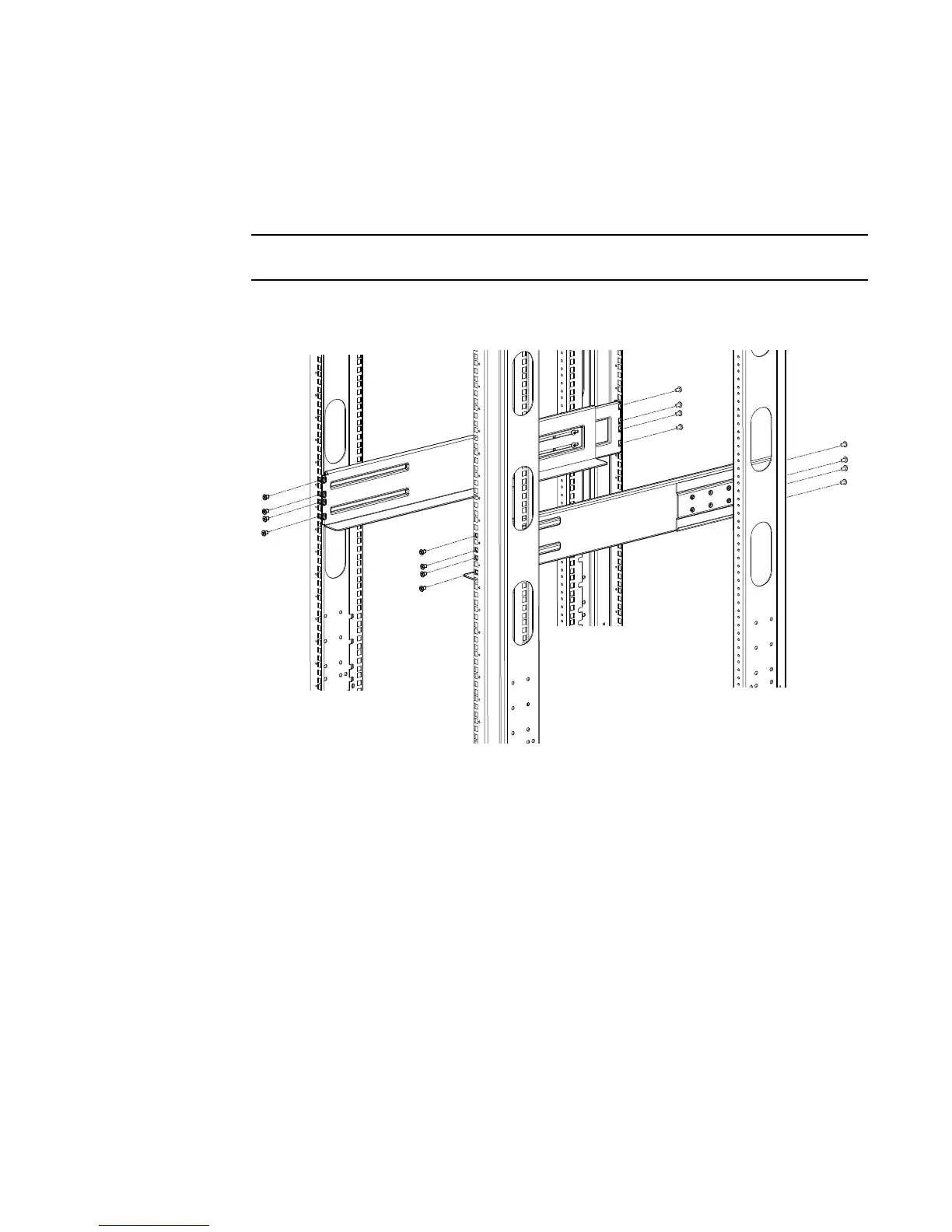

FIGURE 85 Attach the telescoping side rails to the rack.
5. Use the mechanical lift to position the chassis as close to the rack as possible. Slide the
chassis off the lift and onto the side rails and gently guide the chassis into the rack. Refer to
Figure 86.
