Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 121
53-1002373-02
Installing a Brocade MLXe-32 router
2

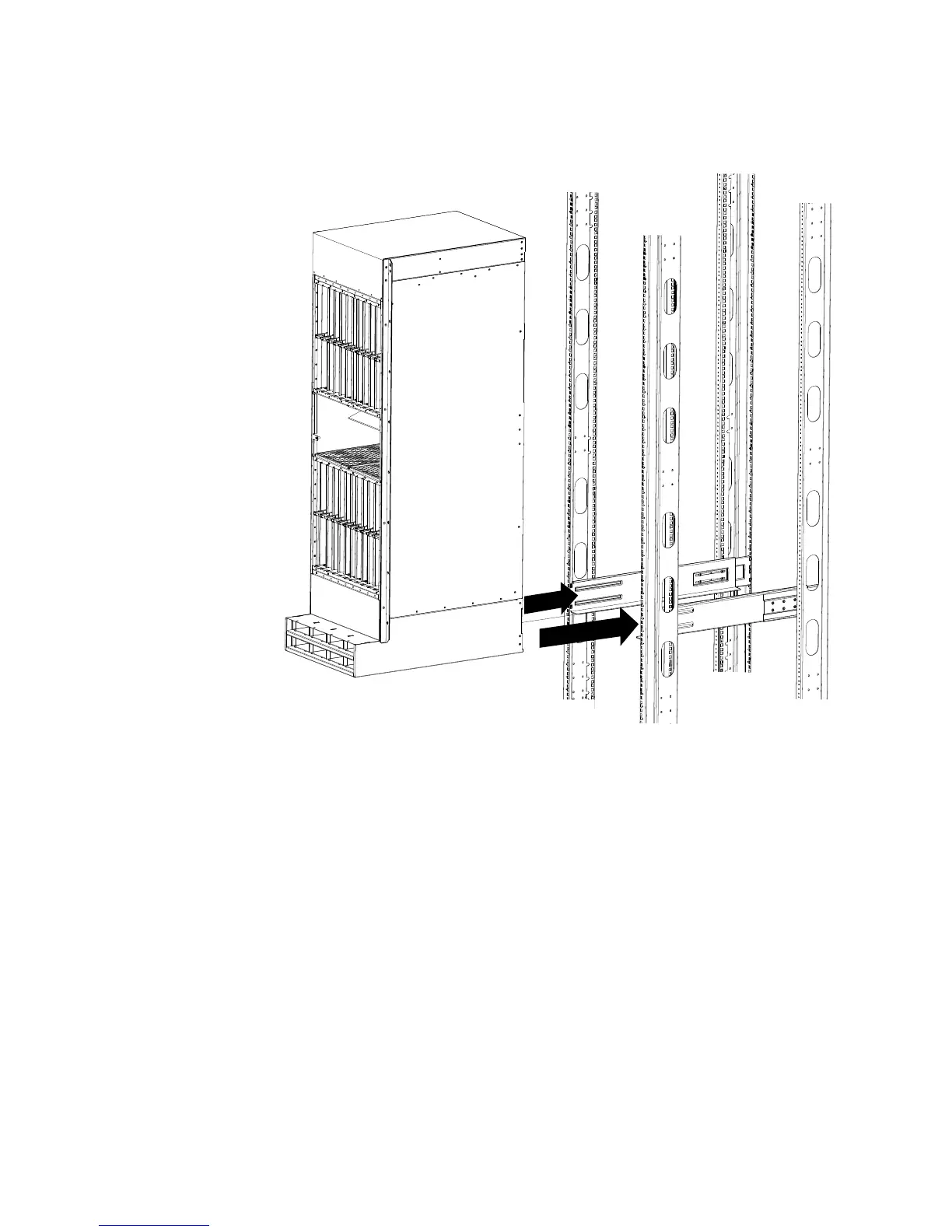

FIGURE 86 Slide the chassis in the rack
6. Once the chassis is securely inserted in the rack, fasten the mounting ears to the front rails of
the rack using screws appropriate for your rack type (eight screws per side). Refer to Figure 87.
