Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 127
53-1002373-02
Installing a Brocade MLXe-32 router
2

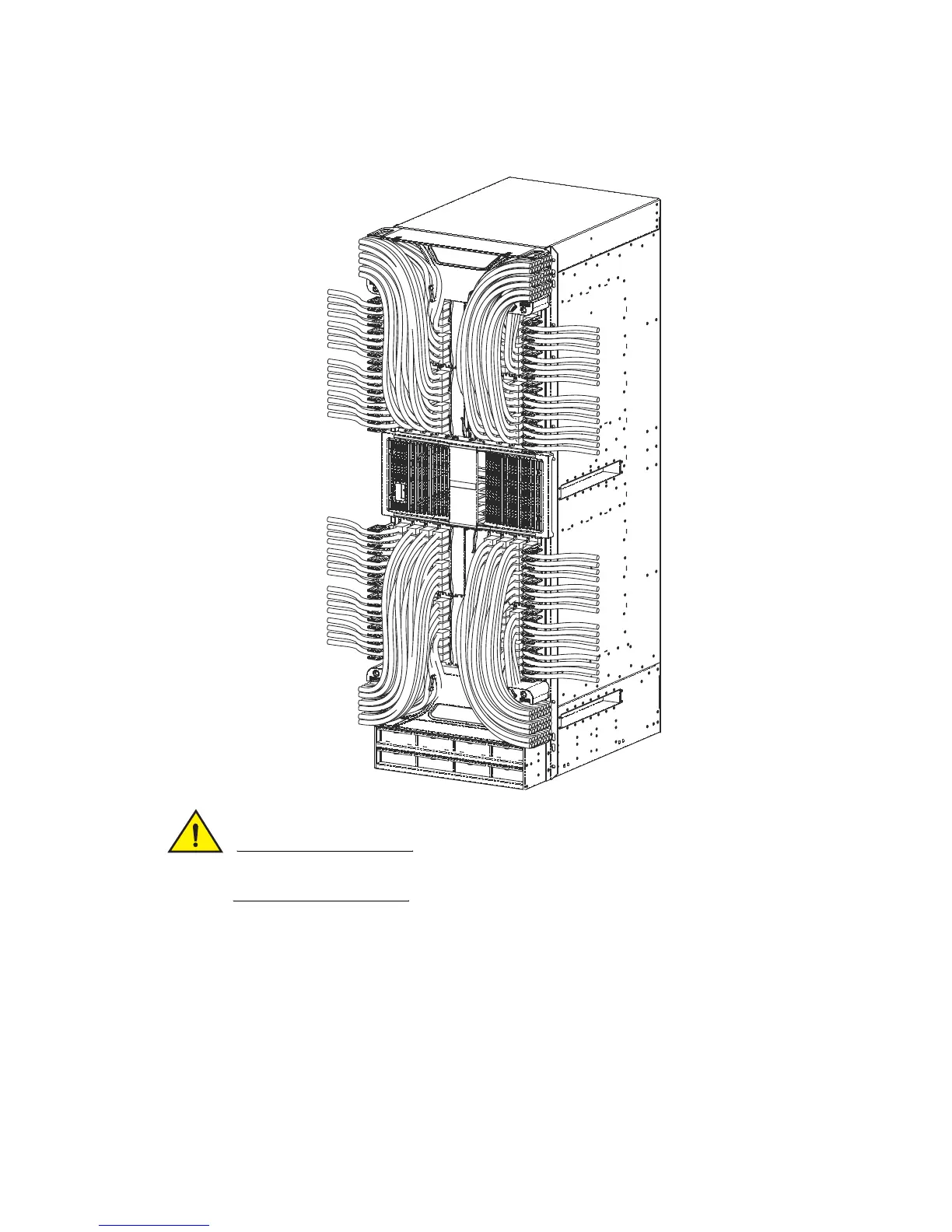

FIGURE 90 Brocade MLXe-32 cable routing diagram
CAUTION
Be sure not to exceed the minimum recommended bend radius for the cables: 2 in. for MRJ-21
cables, and 1.5 in. for Category 5 (RJ45) and fiber-optic cables.
Cable routing for the upper-left quadrant
Route cabling from slots in numerical order starting with the cables for slot #1.
1. Route cables for slots #1 and #2 directly to the left through the side comb. Refer to Figure 91.
