Brocade Communications Systems MLX Series User Manual

128 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1002373-02
Installing a Brocade MLXe-32 router
2

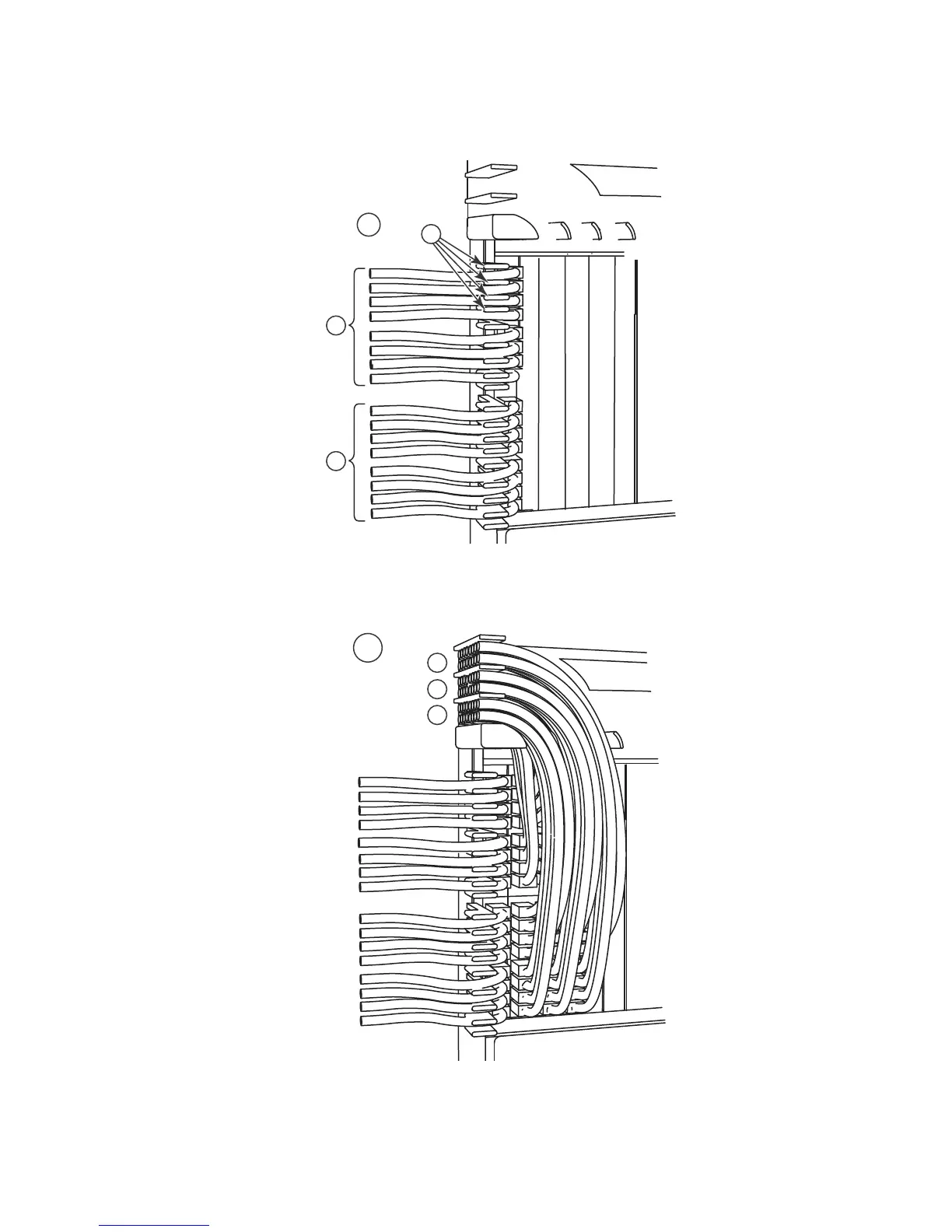

FIGURE 91 Routing upper-left quadrant cables
FIGURE 92 Routing upper-left quadrant cables up
1 Upper left quadrant 3 Cables from slot #1
2 Side combs (18) 4 Cables from slot #2
1 Upper left quadrant 3 Comb B (slot #5 and #6 cables)
2 Comb C (slot #7 and #8 cables) 4 Comb A (slot #3 and #4 cables)
2
4
1
3
1
2
3
4
