Installing a Brocade MLX-32 router
3

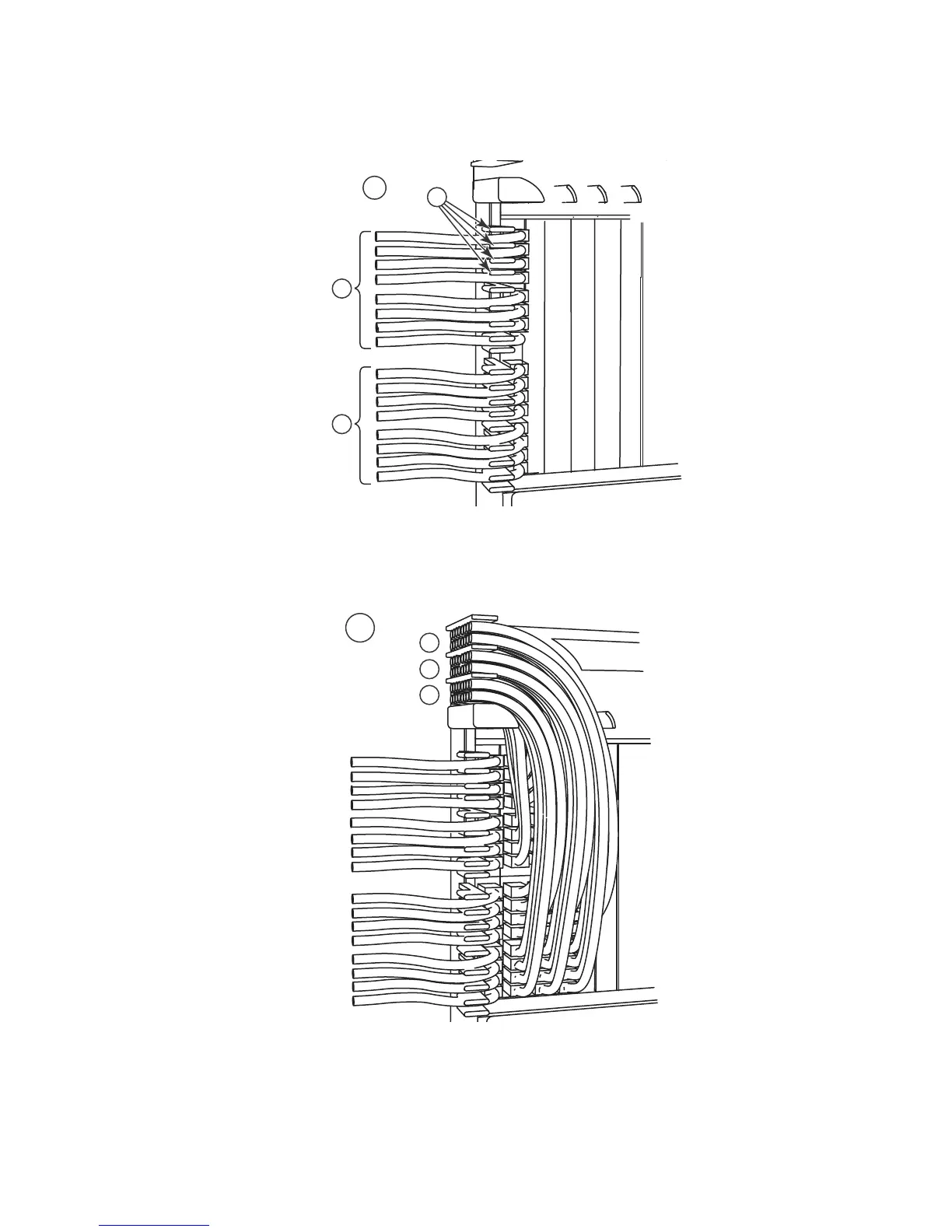

FIGURE 150 Routing upper-left quadrant cables
FIGURE 151 Routing upper-left quadrant cables up
2. Route cables from slots #3 and #4 up through comb A. Refer to Figure 151.
1 Upper left quadrant 3 Cables from slot #1
2 Side combs (18) 4 Cables from slot #2
1 Upper left quadrant 3 Comb B (slot #5 and #6 cables)
2 Comb C (slot #7 and #8 cables) 4 Comb A (slot #3 and #4 cables)
