Installing a Brocade MLX-32 router
3
3. Route cables from slots #5 and #6 up through comb B.
4. Route cables from slots #7 and #8 up through comb C.
Cable routing for the upper-right quadrant
Route cables from slots in numerical order starting with the cables for slot #15.
1. Route cables from slots #15 and #16 directly to the right through the side comb. Refer to
Figure 152.

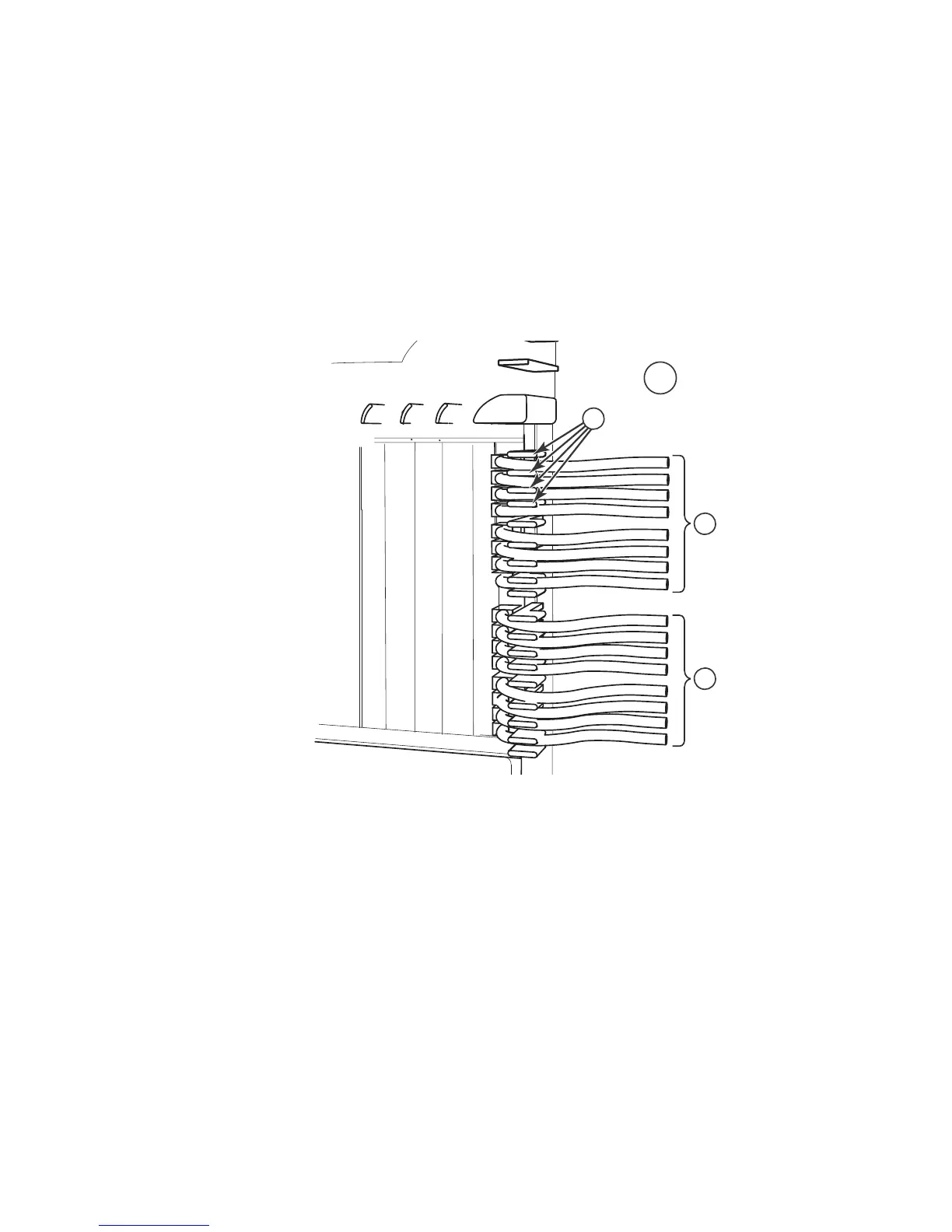

FIGURE 152 Routing upper-right quadrant cables to the right
1 Upper right quadrant 3 Cables from slot #15
2 Side combs (18) 4 Cables from slot #16
2
1
3
4
