Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 279
53-1002373-02
Installing a Brocade NetIron XMR 32000 router
4

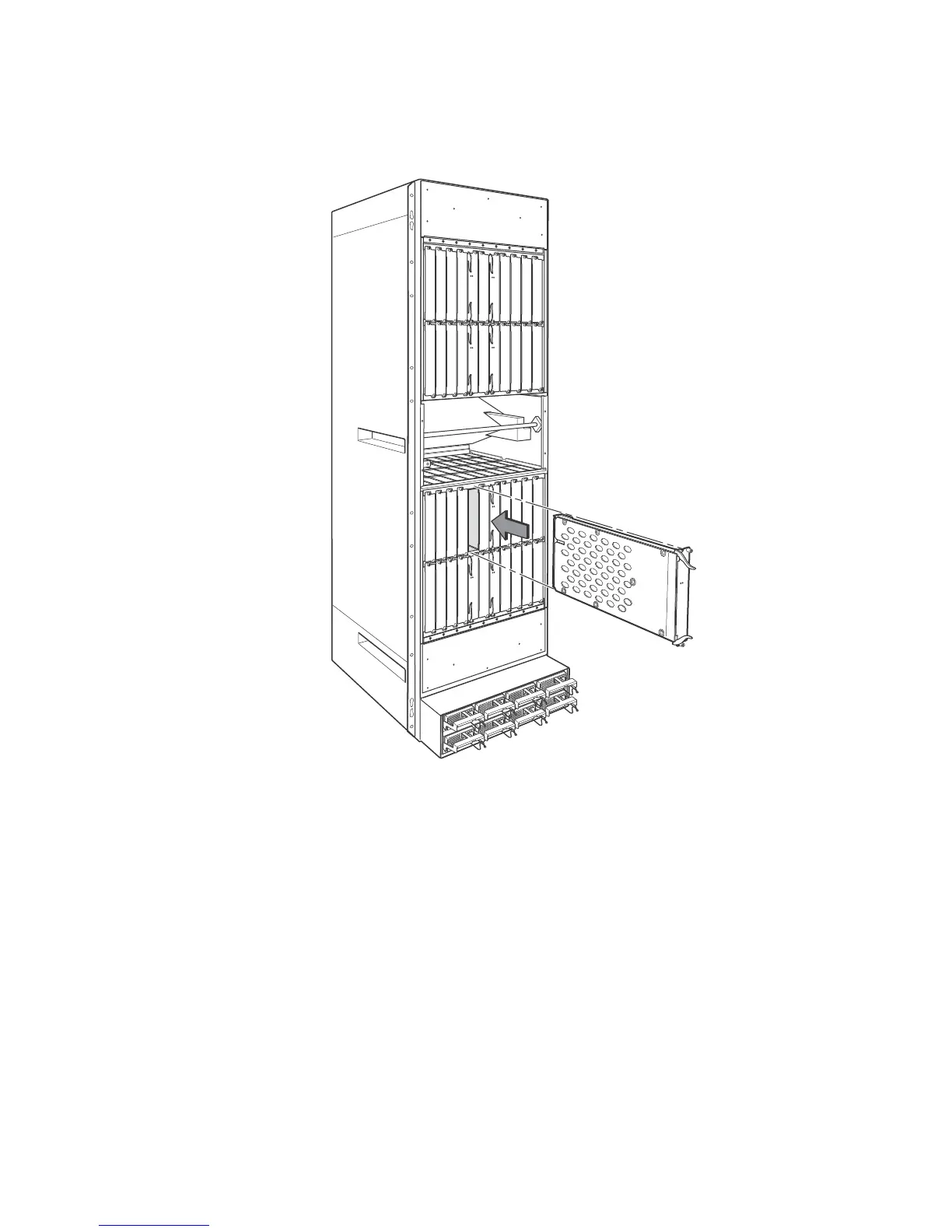

FIGURE 193 Installing a module in the Brocade NetIron XMR 32000 router
6. Tighten the screws at each end of the module faceplate by pushing them in and turning them
clockwise. Complete the tightening process using the flat blade screwdriver.
