Replacing fan assemblies
8
Replacing the air filter in Brocade MLXe 4-slot and 8-slot routers
Follow these steps to replace the air filter in Brocade MLXe 4-slot and 8-slot routers.
1. Loosen the two screws in the front of the filter tray.
2. Pull the filter tray away from the router as shown in Figure 244 or Figure 245.

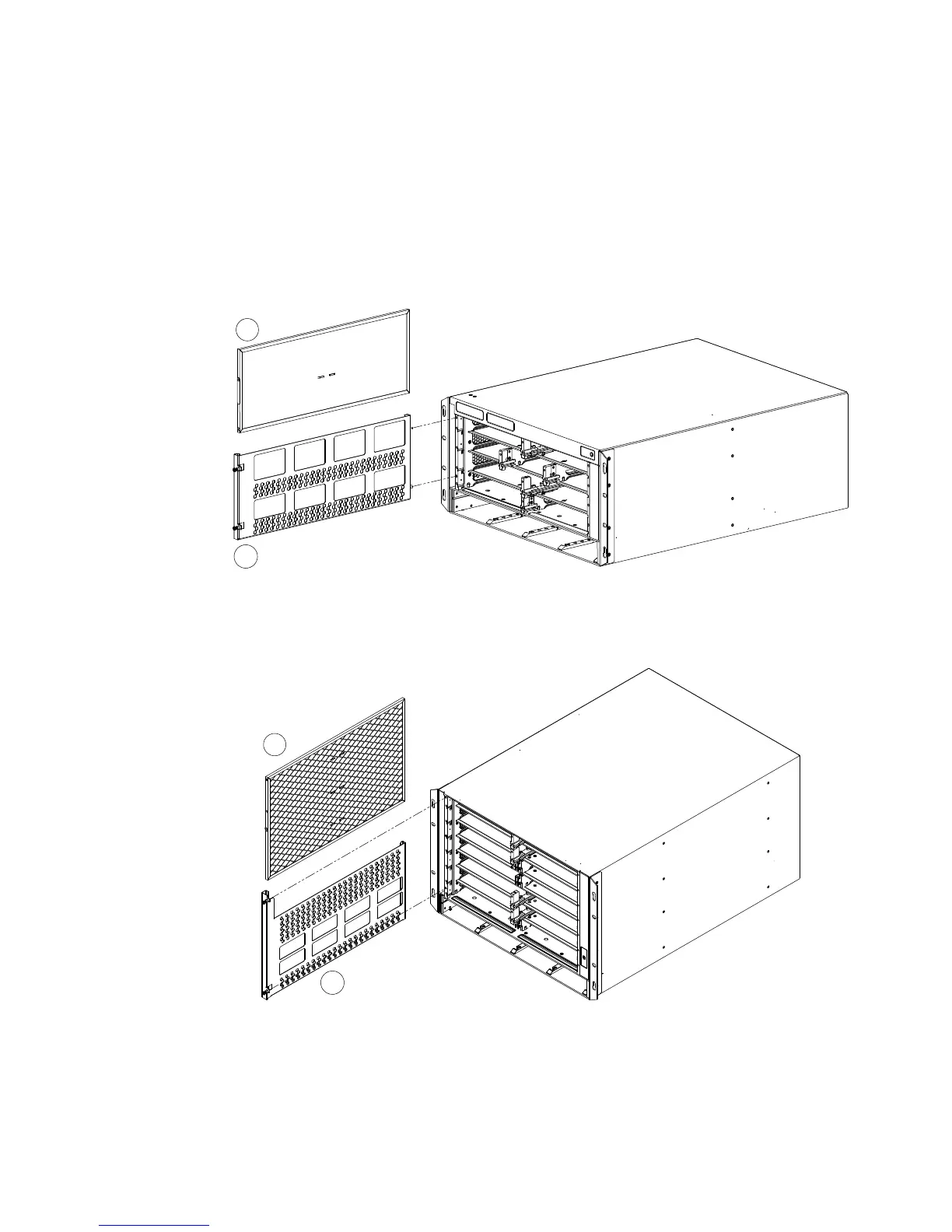

FIGURE 244 Replacing an air filter in a Brocade MLXe 4-slot router.
FIGURE 245 Air filter removal and replacement for the Brocade MLXe 8-slot router.
3. Remove the old air filter from the tray and discard it.
4. Insert the replacement air filter into the air filter tray.
1 Air filter 2 Air filter tray
1 Air filter 2 Air filter tray
