Replacing fan assemblies
8

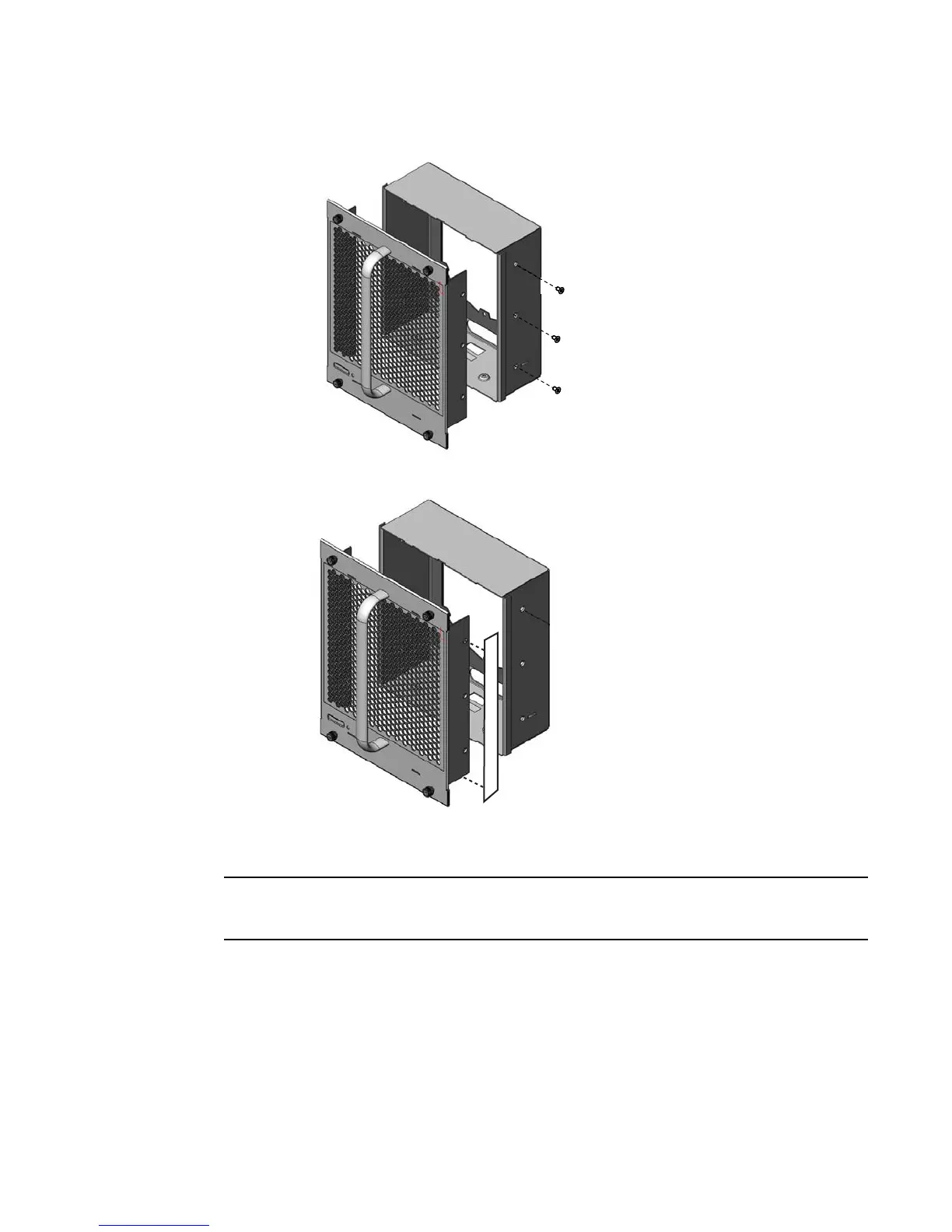

FIGURE 247 Removing the fan assembly faceplate
FIGURE 248 Removing tape from the fan assembly
3. If louvers are present inside the fan assembly faceplate, detach them by removing the 11 roll
pins that secure the louvers to the inside of the fan assembly faceplate.
NOTE
Legacy Brocade MLX-32 fan assemblies may have louvers. Louvers are not present in Brocade
MLXe-32 and newer Brocade MLX-32 fan assemblies.
