6. Secure the transport brackets to the rear of the router using 10 10-32 screws, and to the EIA rack mounting posts using 6
10-32 screws, as shown in the following gure.
NOTE
The transport brackets provide extra stability, and must be installed if you plan to ship the device while it is mounted in
the EIA rack. Before you install the transport brackets, you must rst remove any installed fans.

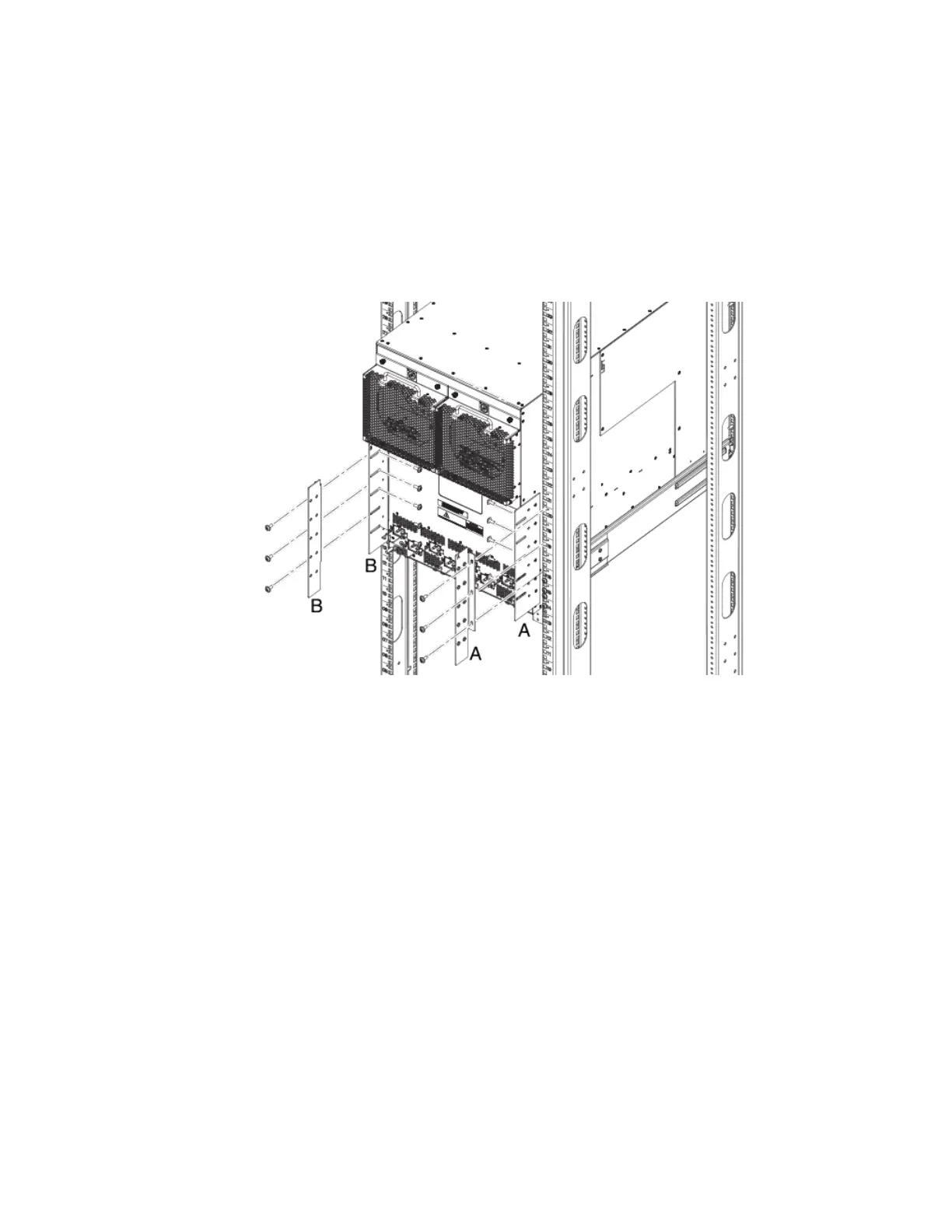

FIGURE 57 Secure transport brackets to the device and EIA rack mounting posts
Mounting Brocade MLXe Series-4, -8, or -16 routers in a 4-post EIA rack
Brocade NetIron MLXe Series Hardware Installation Guide
132 53-1004203-04
