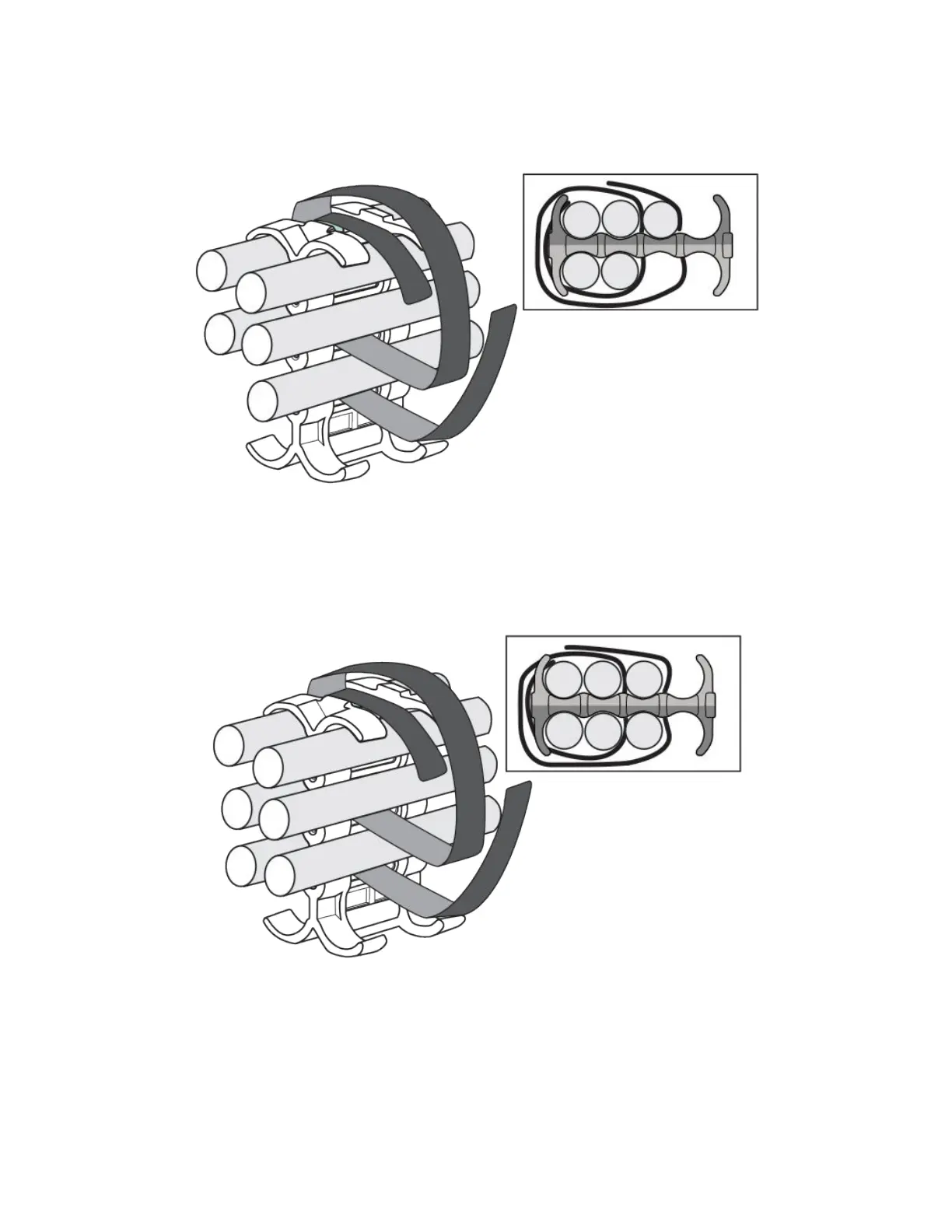

FIGURE 95 Five mRJ21 cables
Cable cinch with six mRJ21 cables
Six mRJ21 cables may be secured as shown in the following gure.
FIGURE 96 Six mRJ21 cables
Cable cinch with seven mRJ21 cables
Seven mRJ21 cables may be secured as shown in the following gure.
mRJ21 procedures
Brocade NetIron MLXe Series Hardware Installation Guide
186 53-1004203-04
