mRJ21 procedures
The following procedure demonstrates securing up to eight mRJ21 cables into the cable cinch. When securing fewer than the maximum
cables, follow the procedure to secure the desired number of cables and simply wrap the remaining Velcro strap around the cable cinch.
Use the additional slots in the clip to secure groups of cables as required.
Cable cinch with two mRJ21 cables

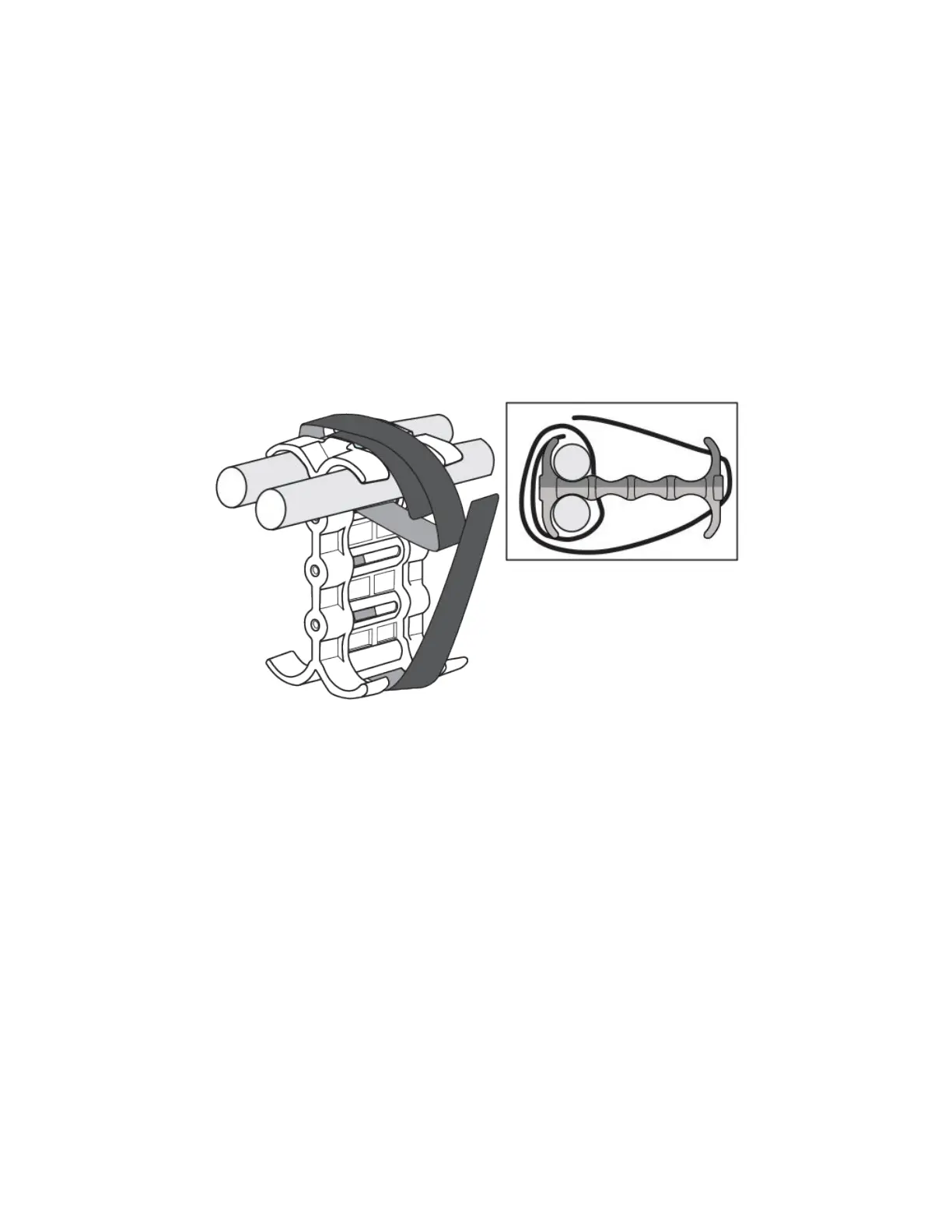

To secure two mRJ21 cables, place the Velcro strap through slot one and use the front and rear left recesses as shown in the following
gure.
FIGURE 92 Two mRJ21 cables
Cable cinch with three mRJ21 cables
Three mRJ21 cables may be secured as shown in the following gure.
mRJ21 procedures
Brocade NetIron MLXe Series Hardware Installation Guide
184 53-1004203-04
