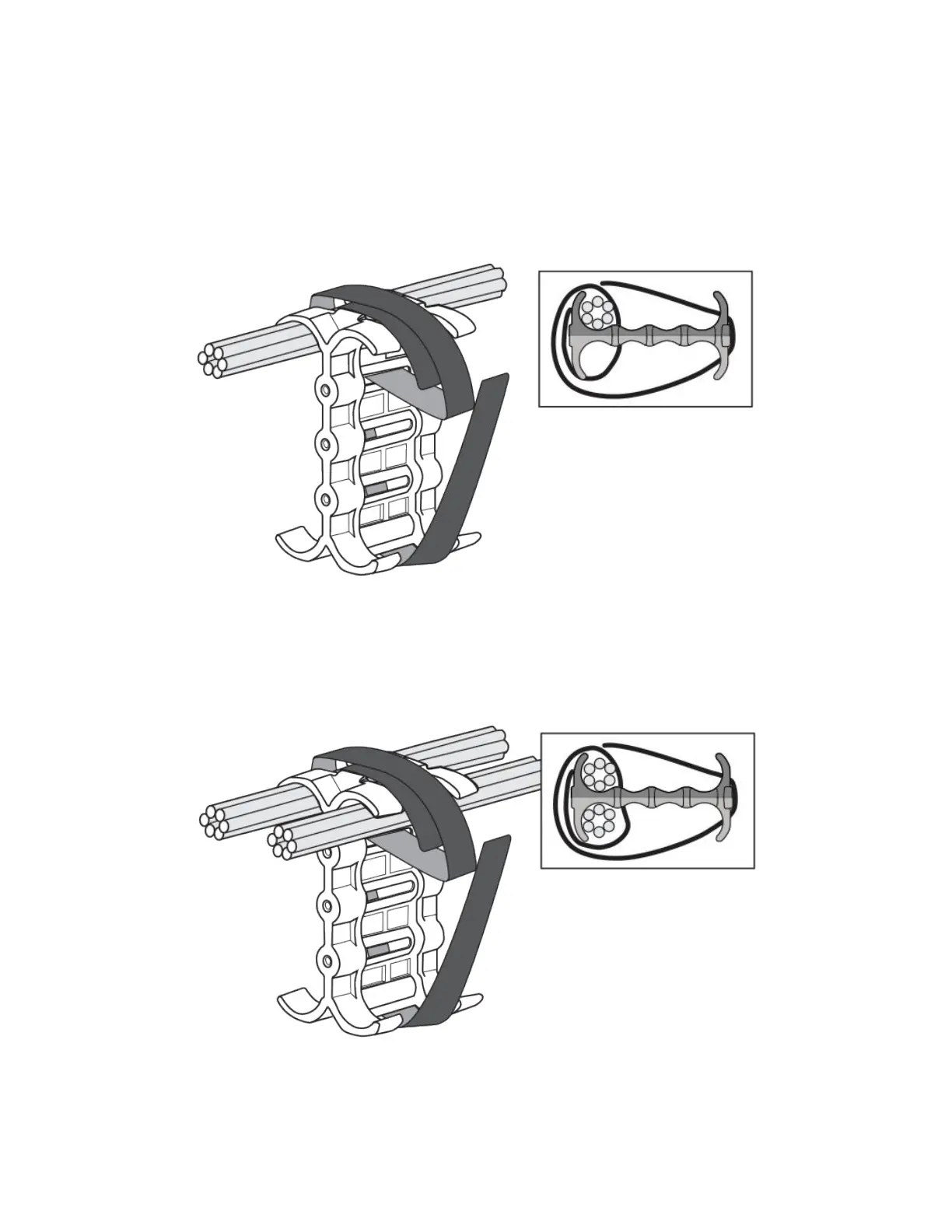

Cable cinch with one group of RJ-45 cables
RJ-45 cables may be secured in groups of six. To secure up to six RJ-45 cables in one group, place the Velcro strap through slot one
and use the front left recesses as shown in the following gure.
FIGURE 99 One group of RJ-45 cables
Cable cinch with two groups of RJ-45 cables
12 RJ-45 cables, in two groups, may be secured as shown in the following gure.
FIGURE 100 12 RJ-45 cables in two groups
RJ-45 procedures
Brocade NetIron MLXe Series Hardware Installation Guide
188 53-1004203-04
