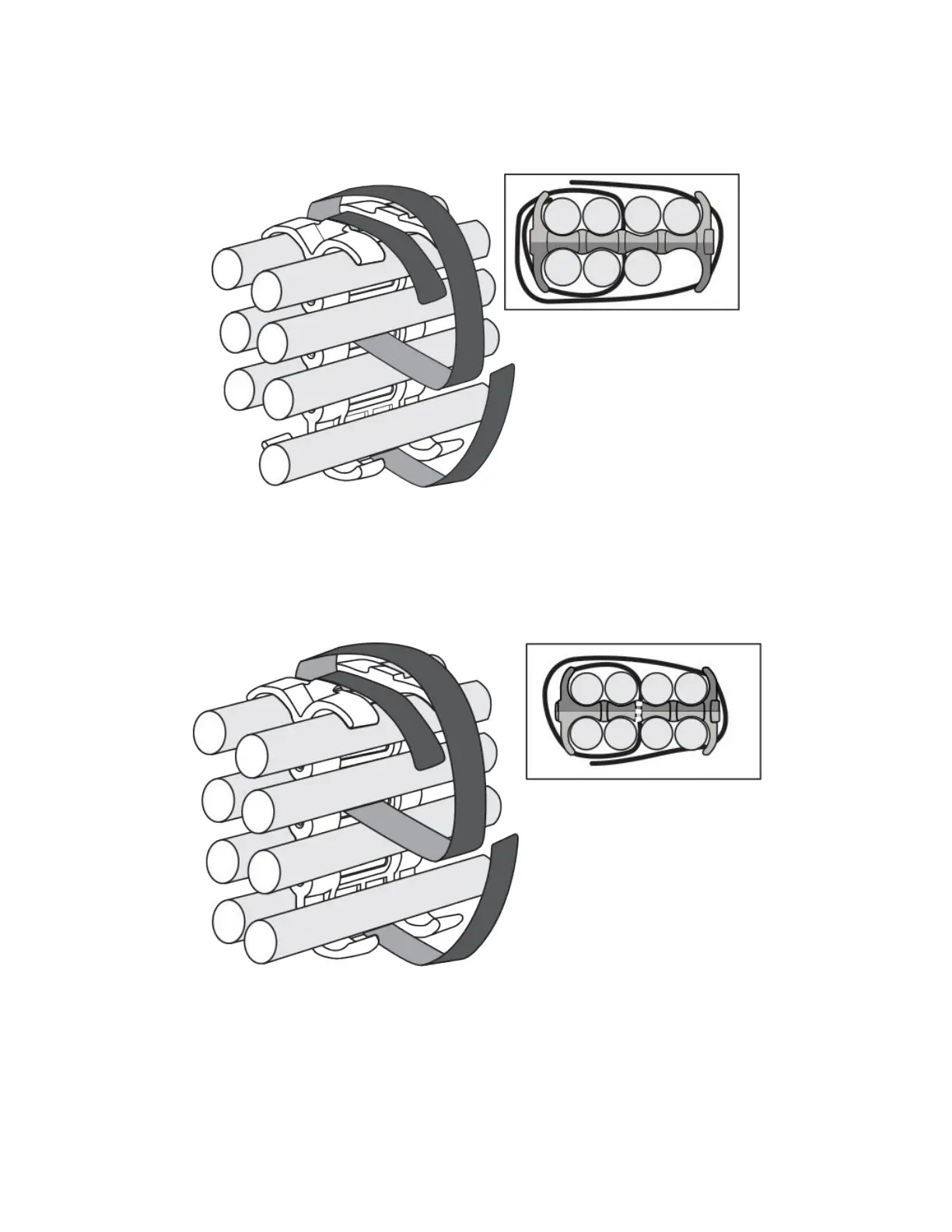

FIGURE 97 Seven mRJ21 cables
Cable cinch with eight mRJ21 cables
Eight mRJ21 cables may be secured as shown in the following gure.
FIGURE 98 Eight mRJ21 cables
RJ-45 procedures
Use the following guidelines when using the cable cinch clips with RJ-45 cables.
RJ-45 procedures
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 187
