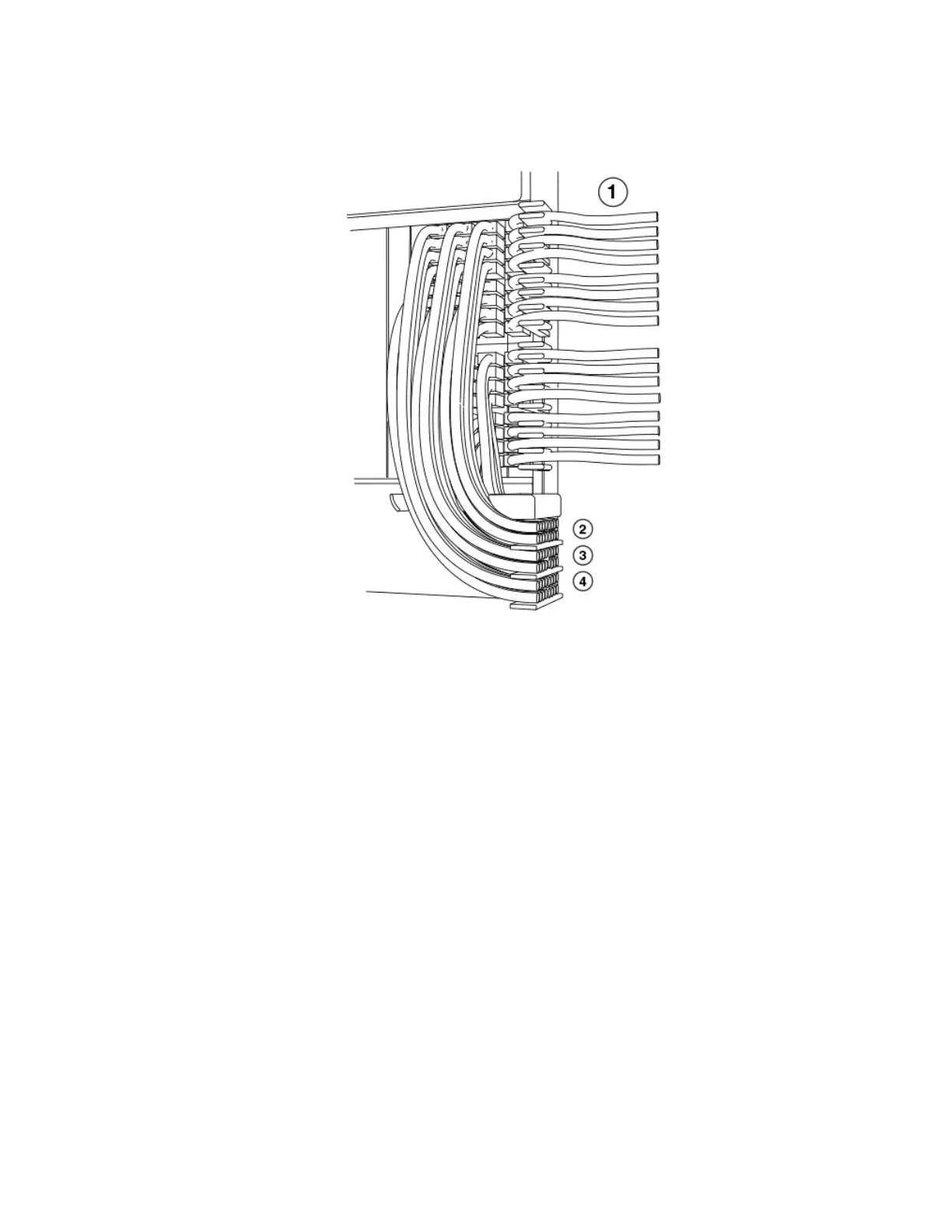

FIGURE 84 Routing lower-right quadrant cables
1. Lower right quadrant
2. Comb B (slot #27 and #28 cables)
3. Comb A (slot #29 and #30 cables)
4. Comb C (slot #25 and #26 cables)
2. Route cables from slots #30 and #29 down through comb A, as shown in the previous gure.
3. Route cables from slots #28 and #27 down through comb B.
4. Route cables from slots #26 and #25 down through comb C.
Accessing modules for service
With the cables bundled correctly, it is easier to access the modules for service. Gently move the cable bundles to the side to access a
module. Use the appropriate Phillips or at-blade screwdriver with an extended shaft to disconnect the cables from the module and
remove the module. There is no need to undo the cable cinches or cable ties. Refer to the following gure.
NOTE
This procedure is easier with two people. One person can hold the cable bundles aside while the other person loosens the
connectors and removes the module.
NOTE
Be careful not to overtighten or cross-thread cable connector screws.
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 165
