Cable cinch with seven groups of RJ-45 cables

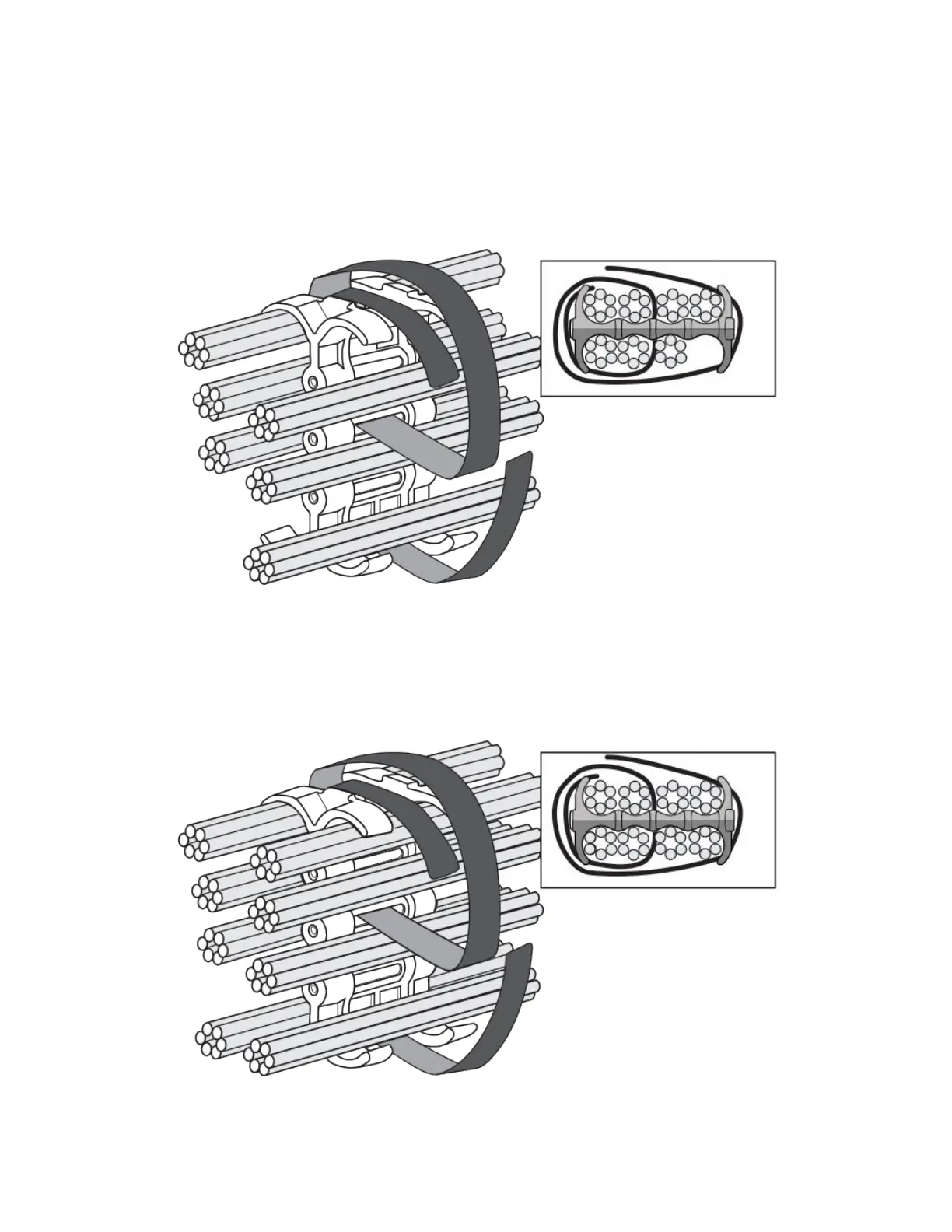

42 RJ-45 cables, in seven groups, may be secured as shown in the following gure.
FIGURE 105 42 RJ-45 cables in seven groups
Cable cinch with eight groups of RJ-45 cables
48 RJ-45 cables, in eight groups, may be secured as shown in the following gure.
FIGURE 106 48 RJ-45 cables in eight groups
