Cable cinch with three groups of RJ-45 cables

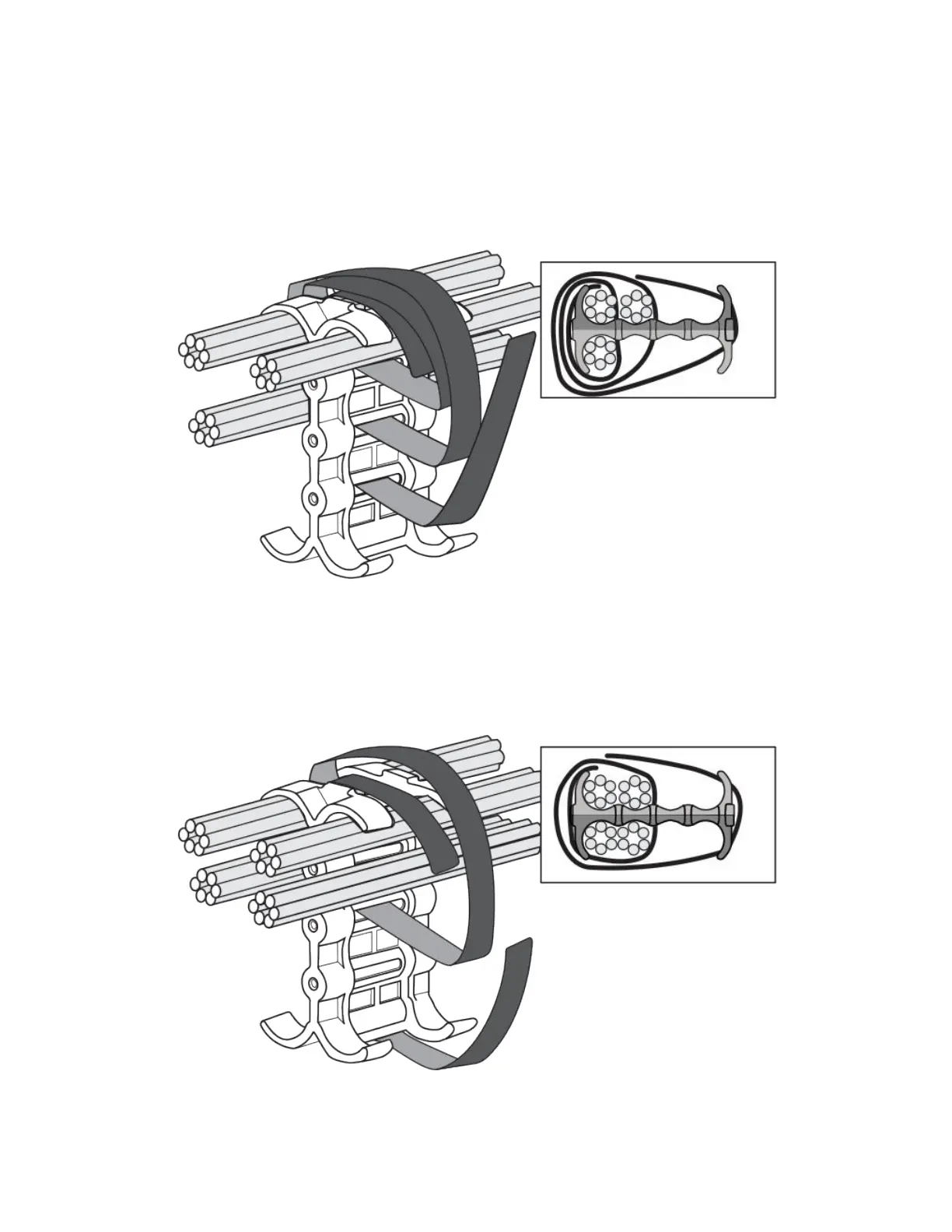

18 RJ-45 cables, in three groups, may be secured as shown in the following gure.
FIGURE 101 18 RJ-45 cables in three groups
Cable cinch with four groups of RJ-45 cables
24 RJ-45 cables, in four groups, may be secured as shown in the following gure.
FIGURE 102 24 RJ-45 cables in four groups
