Cable routing for the lower-right quadrant
1. Route cables from slots #32 and #31 directly to the right through the side comb, as shown in the following gure.

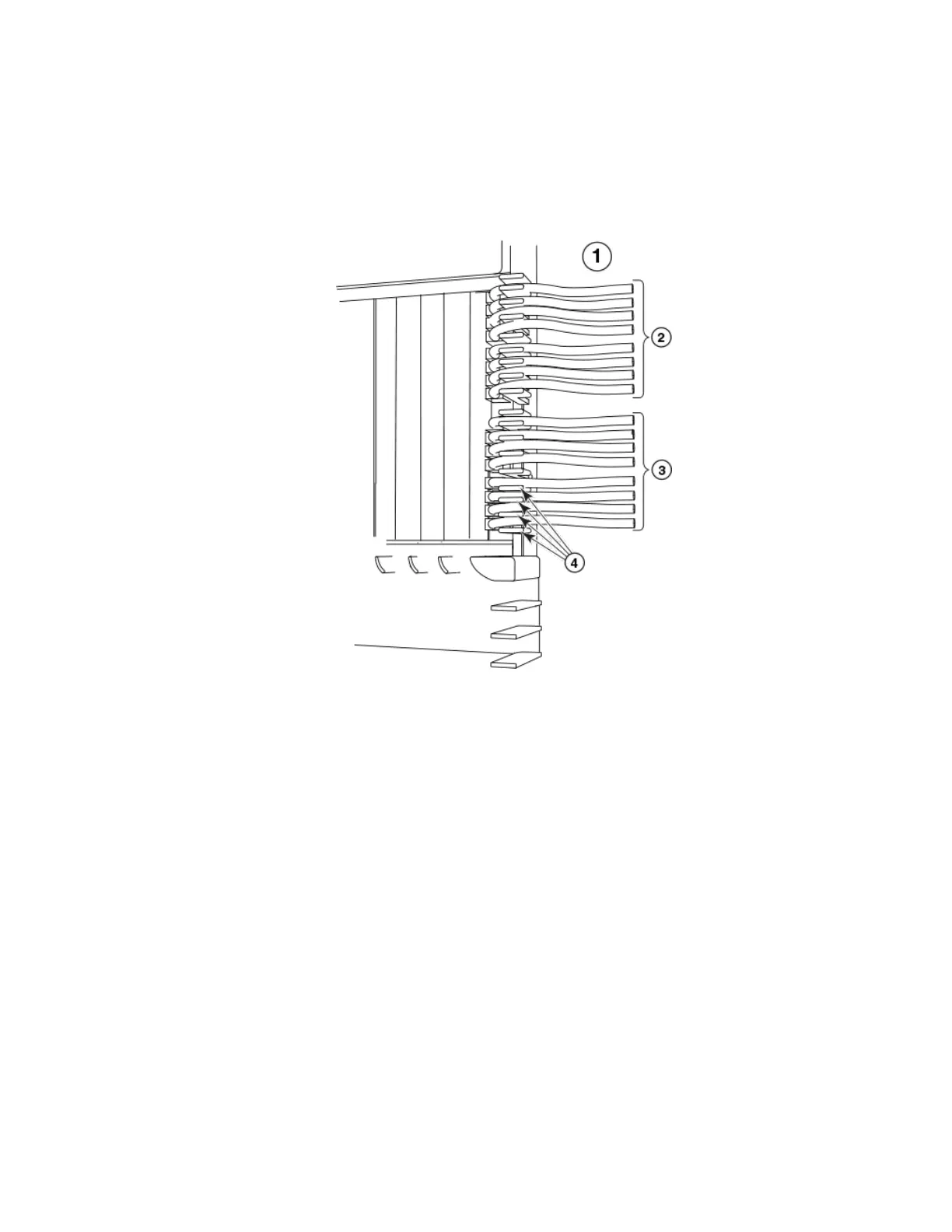

FIGURE 83 Routing the lower-right quadrant cables
1. Lower right quadrant
2. Cables from slot #32
3. Cables from slot #31
4. Side combs (18)
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
164 53-1004203-04
