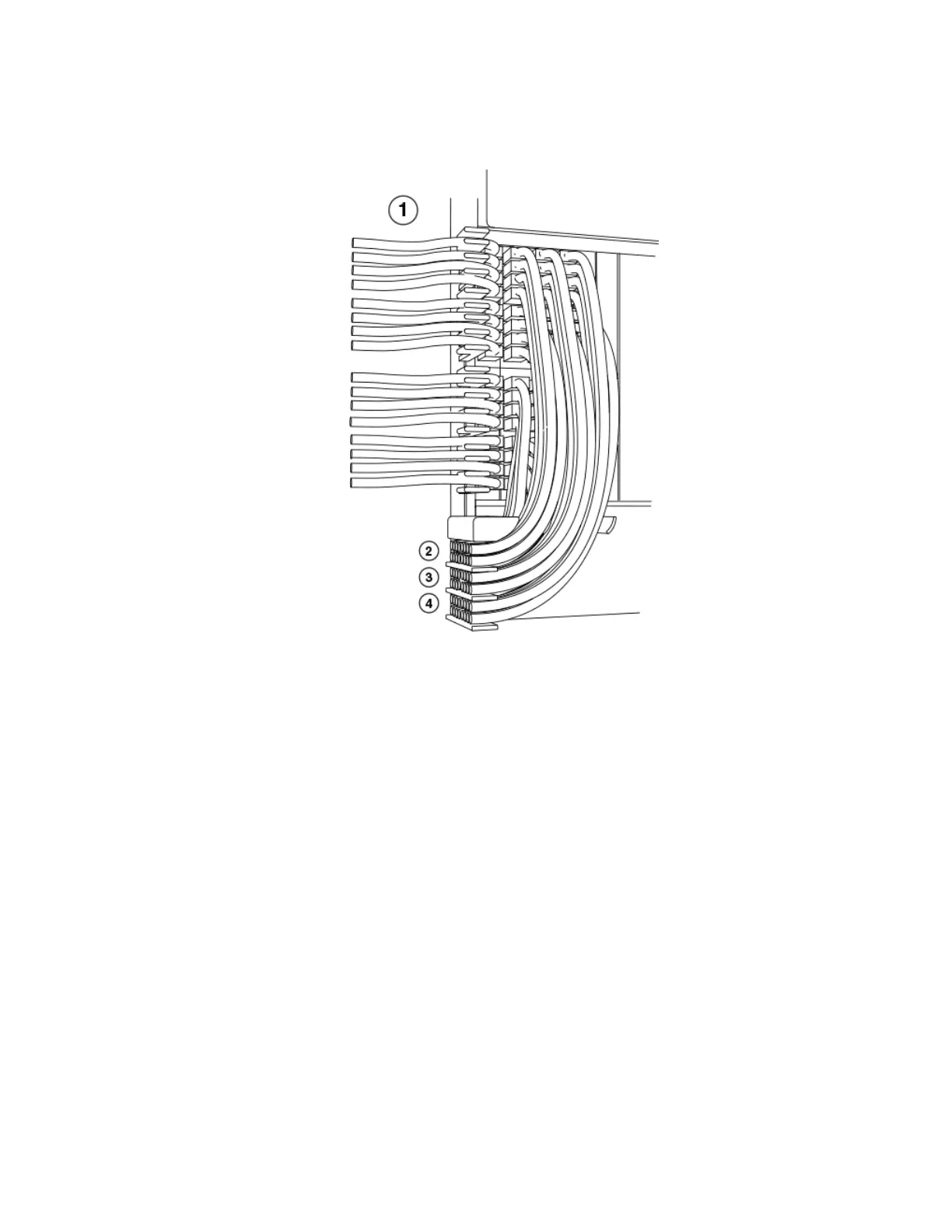

FIGURE 82 Routing lower-left quadrant cables
1. Lower left quadrant
2. Comb B (slot #21 and #22 cables)
3. Comb A (slot #19 and #20 cables)
4. Comb C (slot #23 and #24 cables)
2. Route cables from slots #20 and #19 down through comb A, as shown in the previous gure.
3. Route cables from slots #22 and #21 down through comb B.
4. Route cables from slots #24 and #23 down through comb C.
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 163
