3. Mount the lowest router rst. With one person on each side, lift the router and slip the widest part of each keyhole slot on the
mounting bracket over the corresponding screw in the rack post, as shown in the following gure.

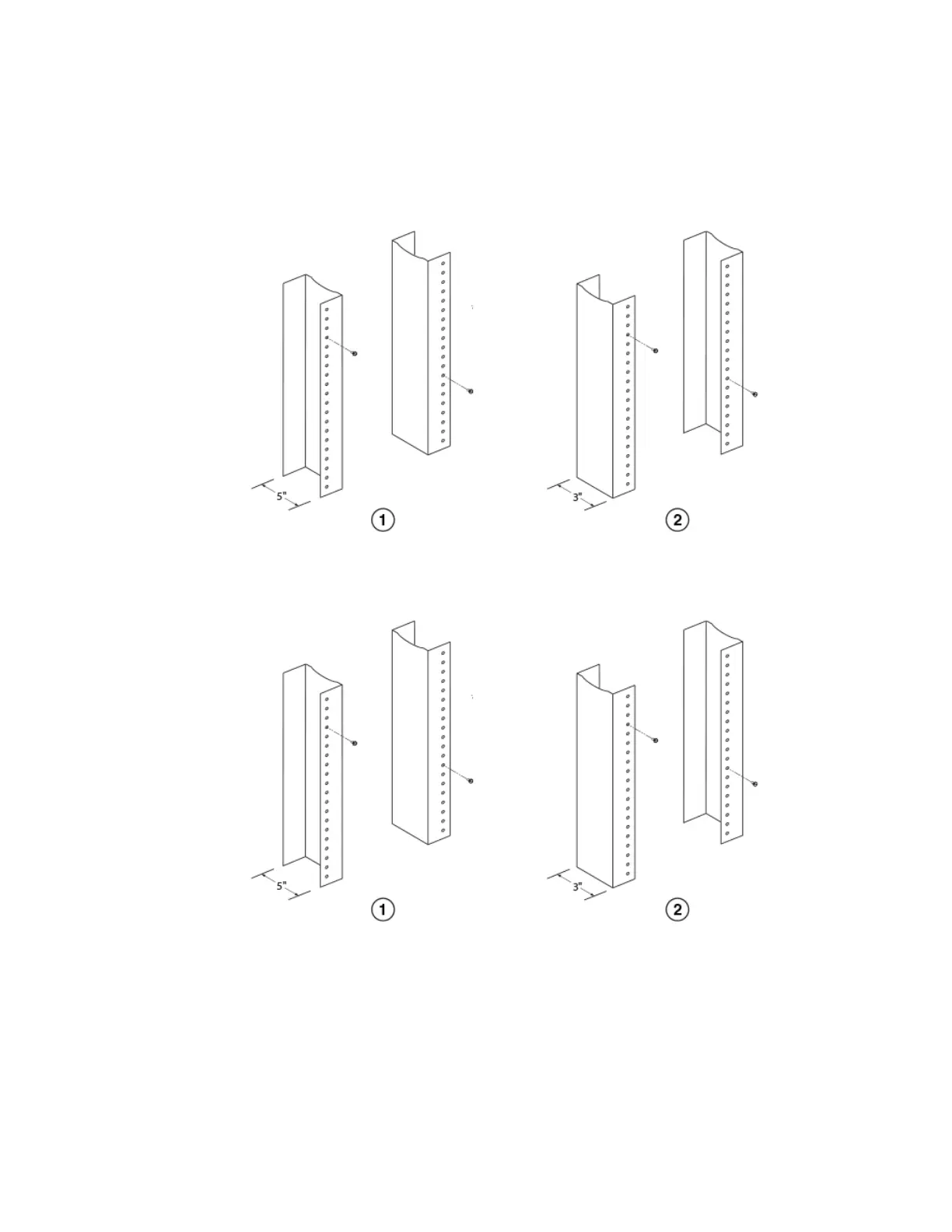

FIGURE 27 Positioning the mounting screws in rack posts
1. Unequal ange equipment rack 2. Network equipment rack
FIGURE 28 Positioning the mounting screws in rack posts
1. Unequal ange equipment rack 2. Network equipment rack
Installing a Brocade MLXe Series-4 router
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 95
