Operation Manual
FT1020G3 Rev 2.4
26
5 New 19” Rack Cabinet & New Loop Modules
5.1 Cabinet Overview
The design of the new Brooks 19” rackmount FT1020G3 cabinet is in accordance with the
industry standard for 19” rackmount equipment. The enclosures are available in the
following cabinet size:
• Large enclosure 1078mm High x 600mm wide x 250mm Deep, Figure 9.
• Small enclosure 678mm High x 600mm wide x 250mm Deep.
• Battery enclosure 290mm High x 600mm Wide x 250 mm Deep.
Any combination of the three sizes can be manufactured. The battery enclosure is normally
fitted below either of the large or small enclosure to allow for larger batteries should the
need arises. When the battery enclosure is to be used with the large enclosure, the whole
cabinet should be mounted on a plinth on the floor such that the LCD display would be at
the eye level.
These addressable FT1020G3 19” rack panels are fully customisable to site requirements
and its racks are modularised in design.
A possible layout for FT1020G3 Mounted in Large 19" Rack Cabinet is shown in Figure 9.
Small enclosure can also be used for FT1020G3.

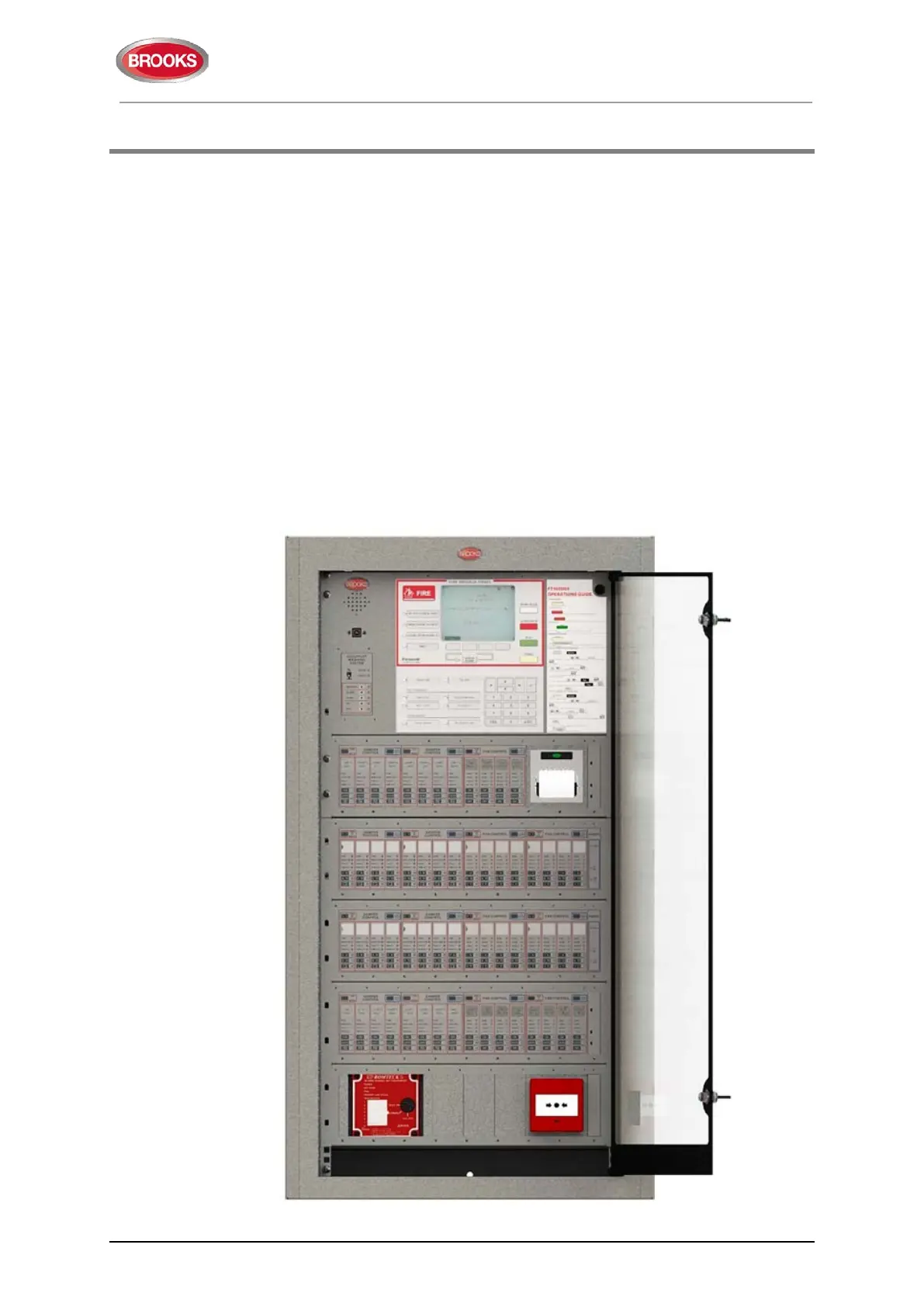

Figure 9 FT1020G3 Mounted in Large 19" Rack Enclosure
