Operation Manual
FT1020G3 Rev 2.4
31

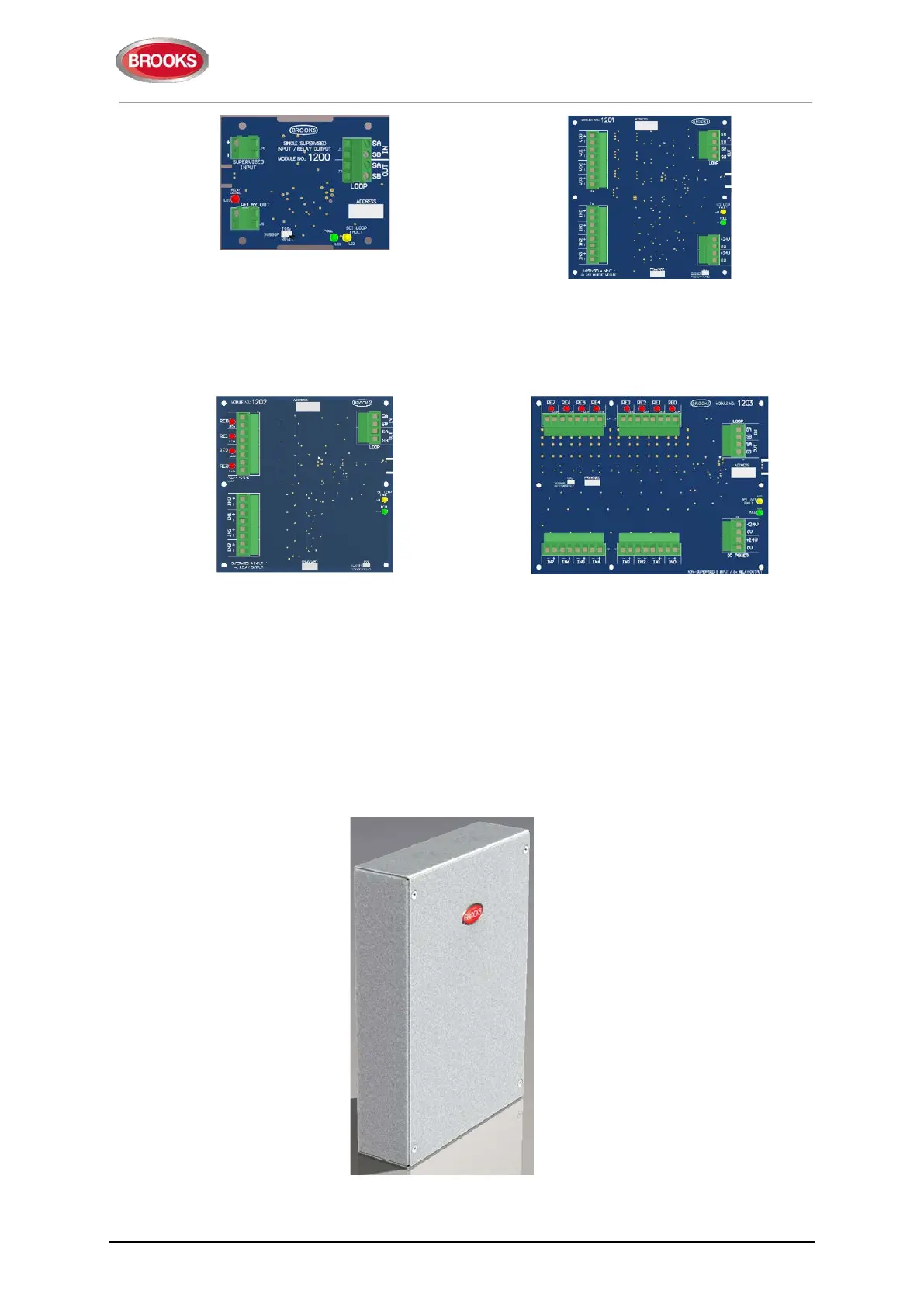

Figure 19 SUB997 Single Supervised
Input / Single Relay Output
1200
Figure 20 SUB983 4 Supervised Input / 4
Supervised 24V Output
1201
Figure 21 SUB994 Four Supervised
inputs / four latching relay outputs
1202
Figure 22 SUB991 8 Non-supervised Input /
8 Relay Output
1203
Any one of the Field Modules 1201, 1202 or 1203 can fit in an optional Small Field Module
Enclosure BAFMES measuring 240mm x 160mm x 70mm. Any two of the Field Modules
1200, 3361/4461/4462 or 3364 can be fitted in BAFMES, Figure 23.
There is also a larger version available, BAFME - Field Module Enclosure measuring
330mm x 240mm x 70mm which can accommodate 2 x 1201, 2 x 1201 or 2 x 1203 or 4 x
1200, 4 x 3361/4461/4462 or 4 x 3364.
Figure 23 Field Module Enclosure BAFMES
