Brother MFC-8380DN Service Manual

3-55
Confidential

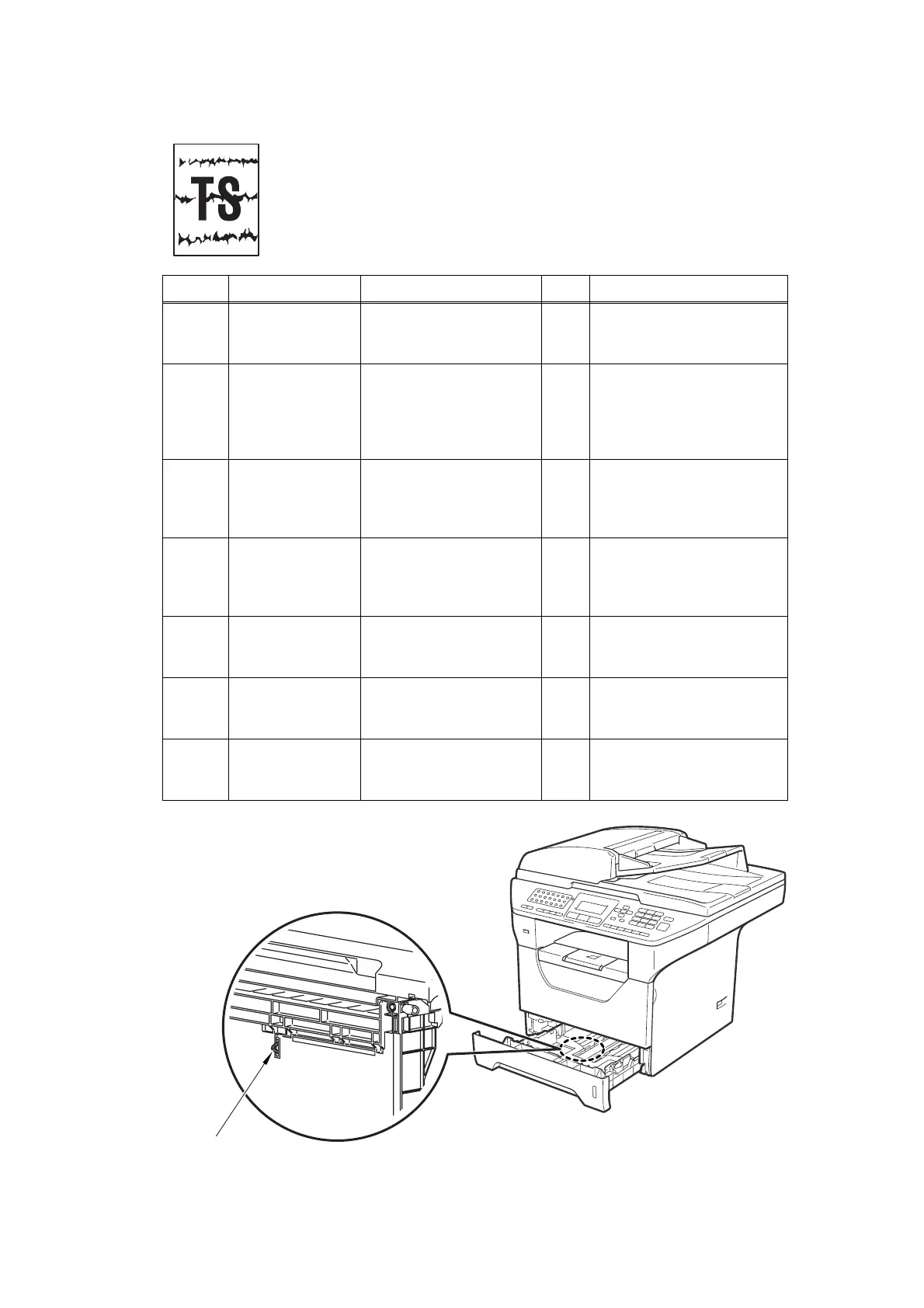

■ Black horizontal stripes
Fig. 3-7
<User Check>
- Clean the inside of the machine and the corona wire in the drum
unit.
- Replace the drum unit with a new one.
Step Cause Check
Result Remedy
1
Dirt on the
charged
electrode
Are the electrodes on
the drum unit and
machine body dirty?
Yes
Clean both electrodes.
(Refer to Fig. 3-2, Fig. 3-3.)
2
Paper tray
ground terminal
provided in the
machine body
Is the paper tray ground
terminal bent, which is
provided in the machine
body?
(Refer to
Fig. 3-7 .)
Yes
Correct bending of paper
tray ground terminal.
3
Toner attached
on the develop
roller
Are the horizontal stripes
at 42.5 mm (develop
roller circumference)
intervals?
Yes
This problem will disappear by
printing approximate 10 pages.
If the same problem occurs,
replace the toner cartridge.
4
Scratch and Dirt
on the exposure
drum
Are the horizontal stripes
at 94.2 mm (exposure
drum circumference)
intervals?
Yes
Replace the drum unit.
5
Scratch and Dirt
on the heat roller
Are the horizontal stripes
at 78.5 mm (heat roller
circumference) intervals?
Yes
Replace the fuser unit.
6
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
7
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
Bottom surface
of Paper tray
Paper tray ground terminal.

Brother MFC-8380DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	e-mail, FTP, OCR, USB
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	4, 9, 16, 25
Copy speed (black, normal quality, A4)	30 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	500 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Internal memory	64 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	LCD
Market positioning	Home & office
Custom media sizes	(69.8 - 216) x (116 - 406.4) mm
Dimensions (WxDxH)	531 x 451 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Fax, Scan
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Linux, Windows 2000, XP/2003, Vista, XP, Mac OS X 10.3.9
Maximum print size	216 x 297 mm
Media weight (tray 1)	60 - 105 gsm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4, IPv6
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	85 W
Power consumption (PowerSave)	19 W
Power consumption (average operating)	680 W
Package weight	21100 g
