Brother MFC-8380DN Service Manual

2-2
Confidential
2. ELECTRONICS

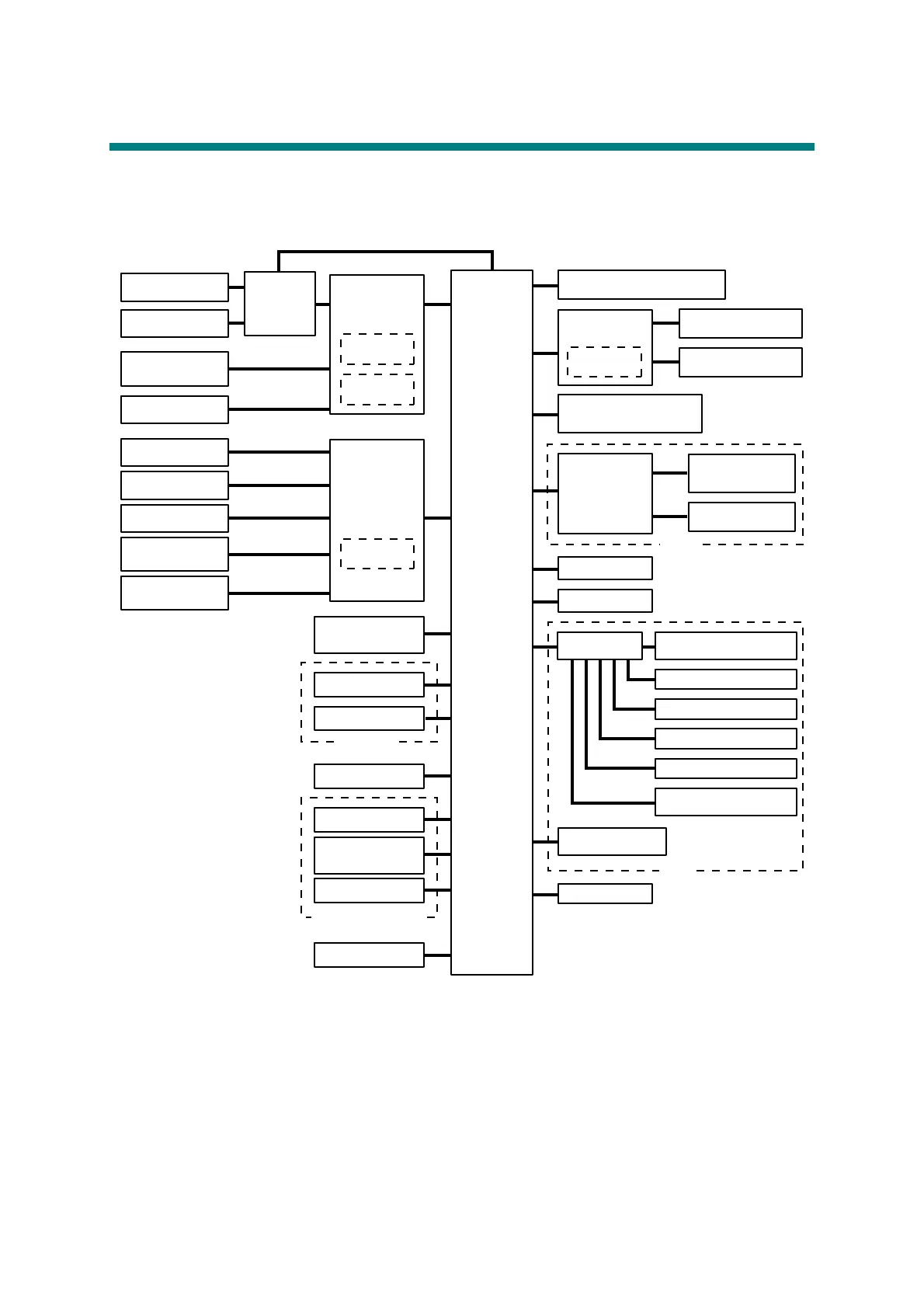

2.1 General Block Diagram
Fig. 2-2
High-voltage
power supply
Low-voltage power supply
Fuser thermistor
Main PCB
Regist front
sensor
Main fan
LT sensor PCB
(PE+PEDGE)
Regist rear
sensor
Toner
sensor PCB
(Light
reception)
(Main fan)
Toner LED PCB
(Light emission)
Power supply fan
Front cover
sensor ASSY
Wireless LAN
(Wireless LAN model)
MP sensor PCB
Tray1 solenoid
Regist solenoid
Main motor
Panel PCB
DX solenoid
DX unit sensor PCB
MP solenoid
LT solenoid
Front relay
PCB
New toner
sensor
Rear relay
PCB
Paper eject
sensor
Document eject sensor
(CIS model)
LT PCB
LT1
Polygon motor
Laser diode PCB
Sensor PCB
(PE+PEDGE)
Document front sensor 1
Document front sensor 2
Document rear sensor
Switch back sensor
Document scanner
unit ASSY
ADF cover open sensor
(CIS model)
ADF
Laser unit
ADF relay
PCB
FB cover sensor
(CCD model)
Battery
NCU PCB
Speaker ASSY
Scanner motor
Scanner module
Home position
sensor (CCD model)
