Brother MFC-8380DN - LF Roller 3 ASSY

5-127
Confidential

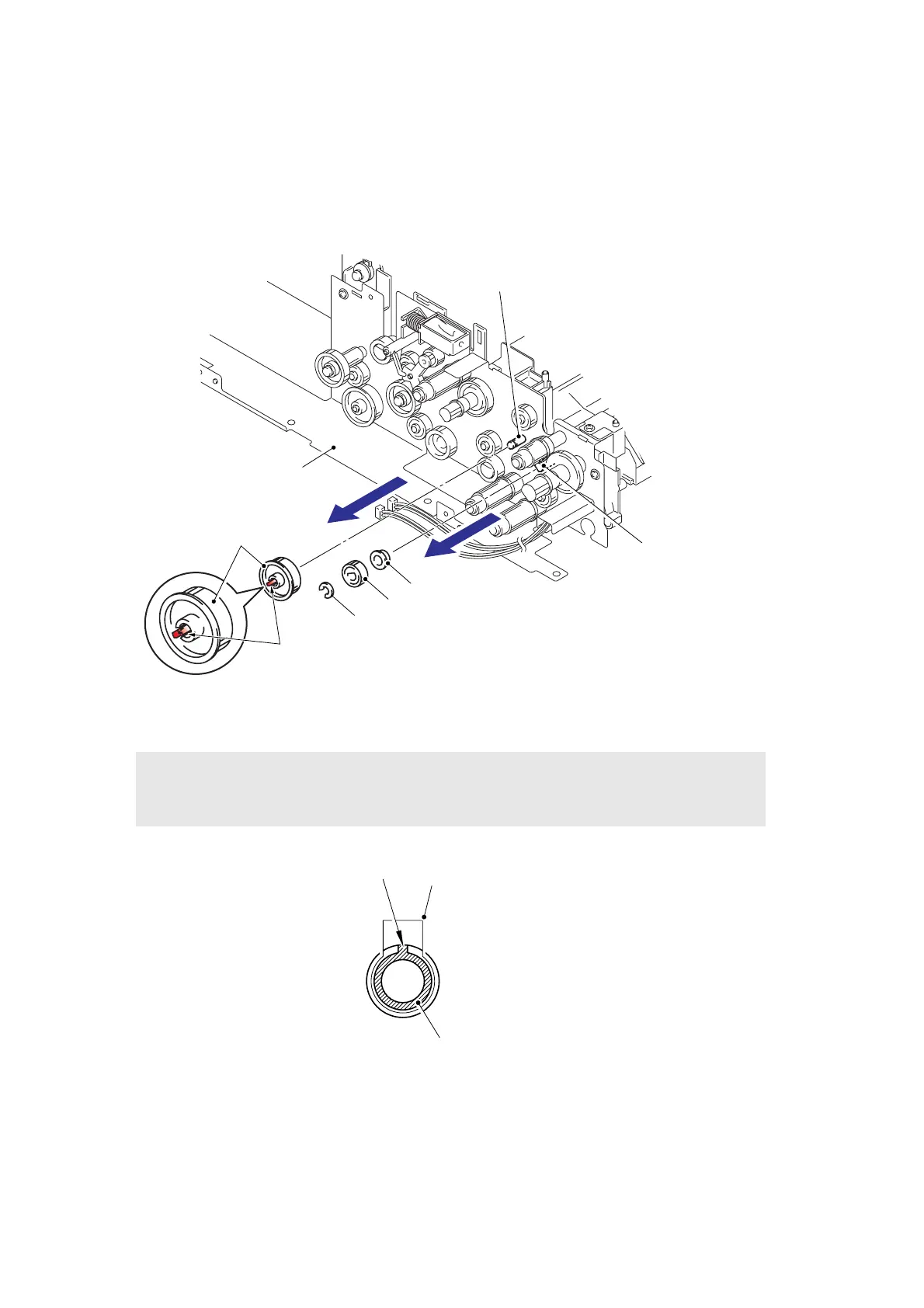

9.8.68 LF Roller 3 ASSY
(1) Release the Hook of the Gear to remove the Gear from the Document frame calking
ASSY DX.
(2) Remove the Collar 5 from the LF roller 3 ASSY, and then remove the LF roller gear 27N
and the Conductive bushing N from the Switch back roller ASSY.
Fig. 5-141
Fig. 5-142
Assembling Note:
• When assembling the LF roller 3 ASSY, assemble the Conductive bushing N with
aligning the Boss of the Conductive bushing N with the notch on the ADF chute ASSY.
11
22
LF roller gear 27N
Switch back roller ASSY
Conductive bushing N
Collar 5
Hook
Document frame calking ASSY DX
Hook
Shaft
Boss
ADF chute ASSY
Conductive bushing N
