(3) Disconnect the two connectors from the Toner LED PCB.
(4) Release the two Hooks to remove the LED holder from the Toner LED PCB.

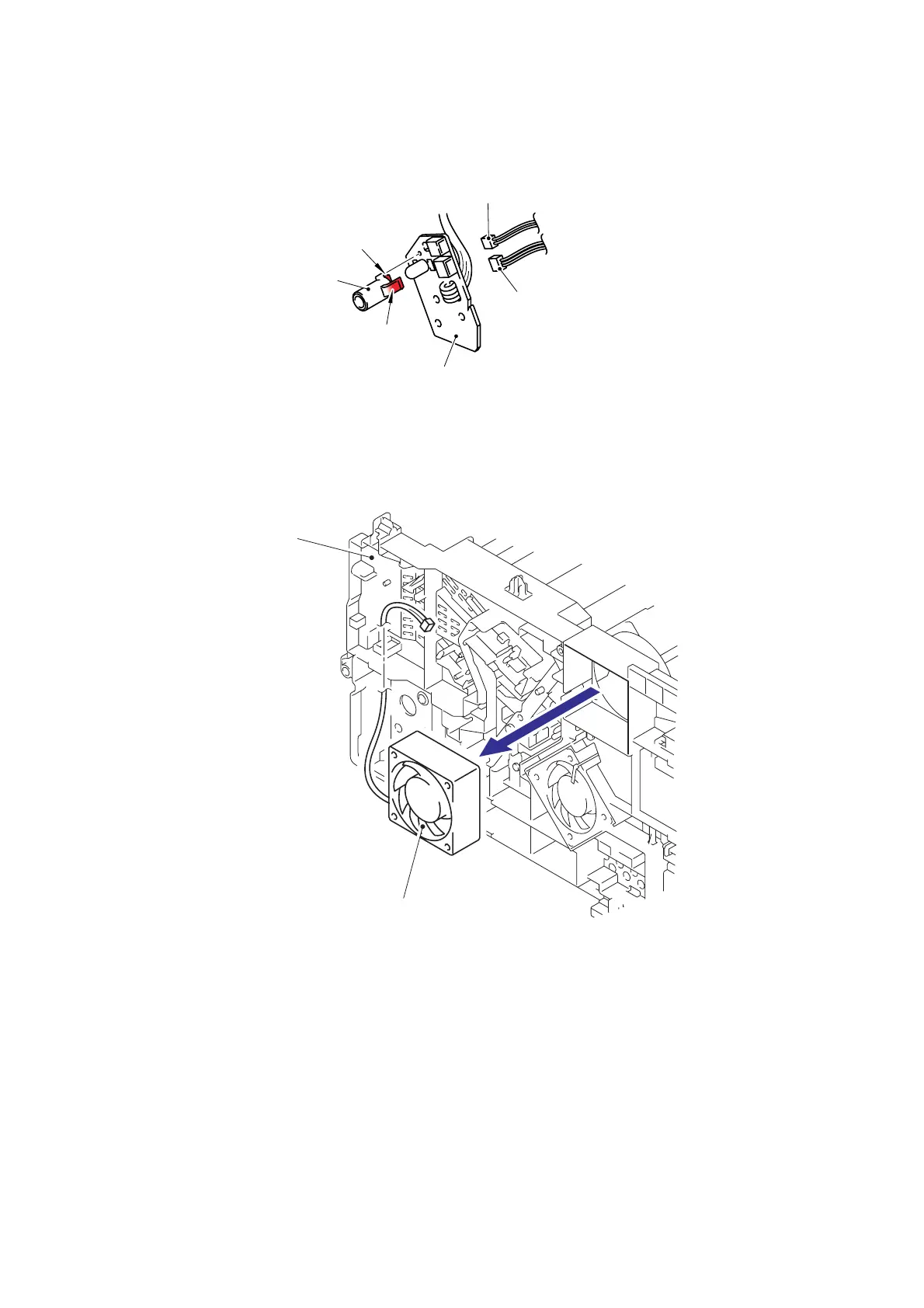

Fig. 5-260
9.40 Fan Motor 60 Unit
(1) Remove the Fan motor 60 unit from the Frame R.
Fig. 5-261
Hook
Hook
Toner LED PCB unit ASSY
LED holder
Fan motor 60 unit LV connector
Fan motor 60 unit connector
<Right side>
Fan motor 60 unit
Frame R
