9.8.44 ADF Chute ASSY

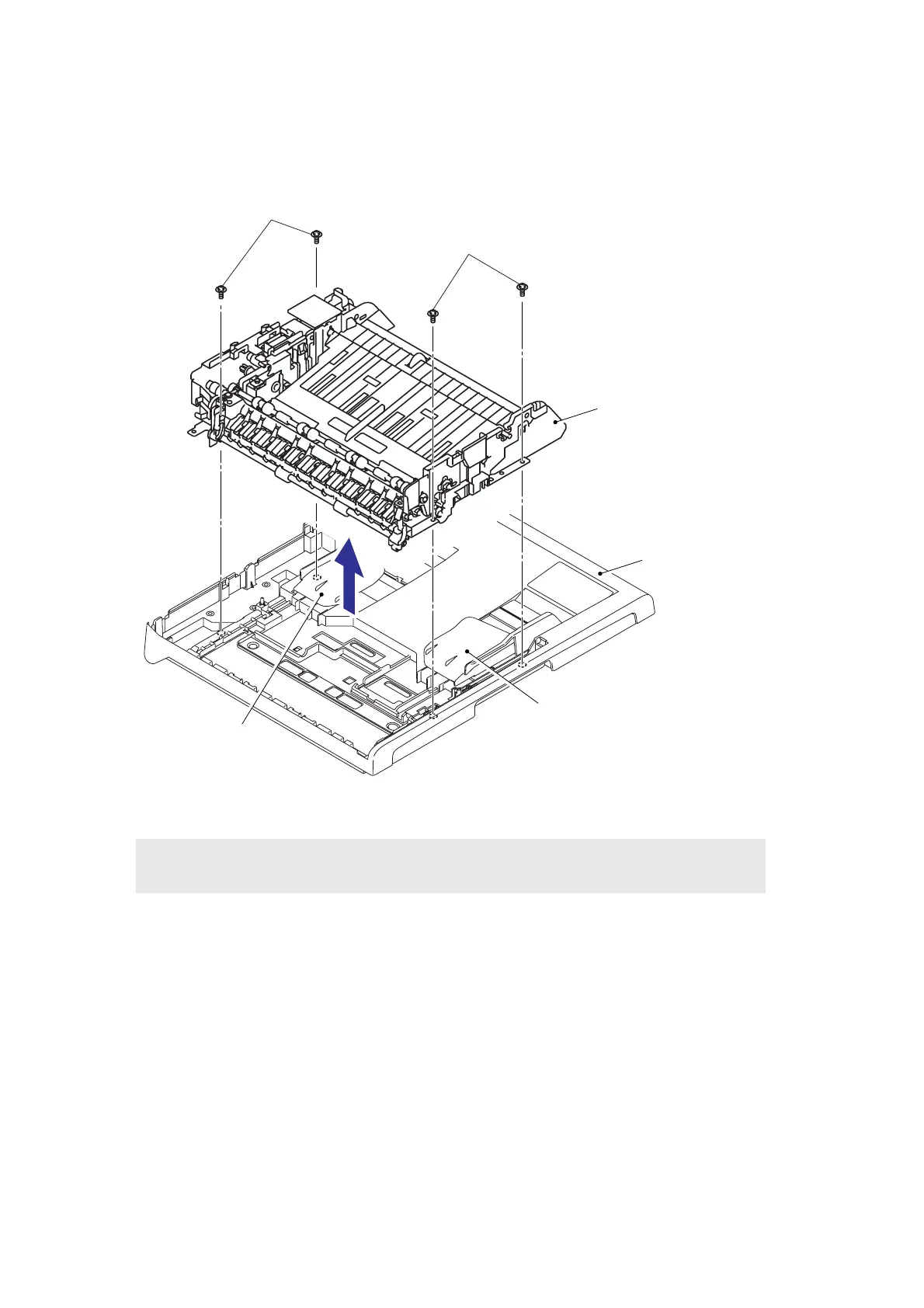

(1) Remove the four cup B M3x10 Taptite screws, and remove the ADF chute ASSY from
the Document cover sub ASSY.
Fig. 5-106
Note:
• Check that the Document guide is opened outwards.
ADF chute ASSY
Document cover sub ASSY
Taptite cup B M3x10
Taptite cup B M3x10
Document guide
Document guide
