Brother MFC-8380DN - NCU PCB ASSY (for the Models with the NCU Only); CCD Model

5-156
Confidential
9.12 NCU PCB ASSY (For the models with the NCU only)
■ CCD model
9.12.1 NCU PCB ASSY

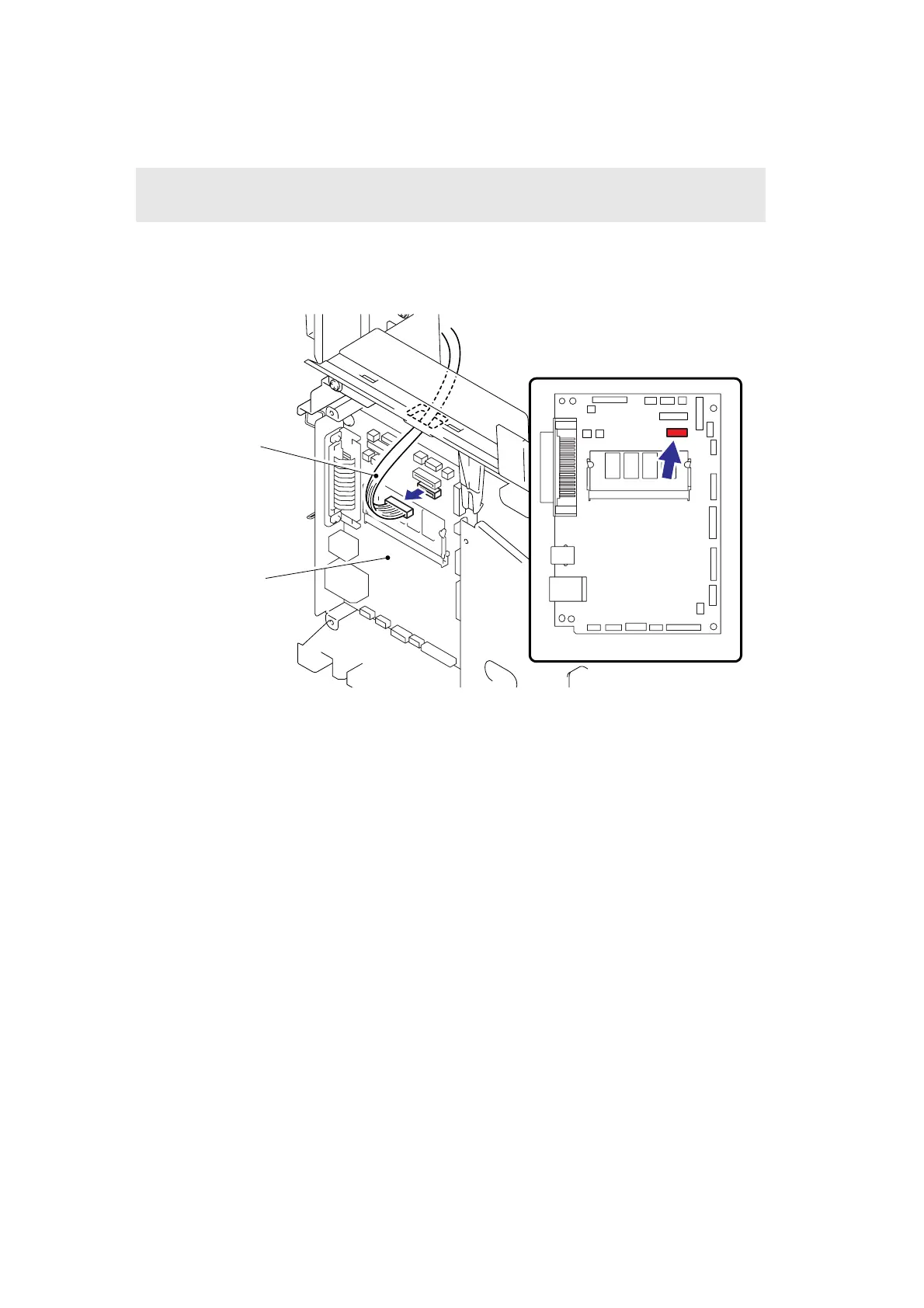

(1) Disconnect the connector of the NCU harness from the Main PCB.
Fig. 5-180
Note:
• In the case of the CIS model, refer to "9.12.2 NCU PCB ASSY".
NCU harness
Main PCB
Main PCB
<Left side>
