1.2 Part names

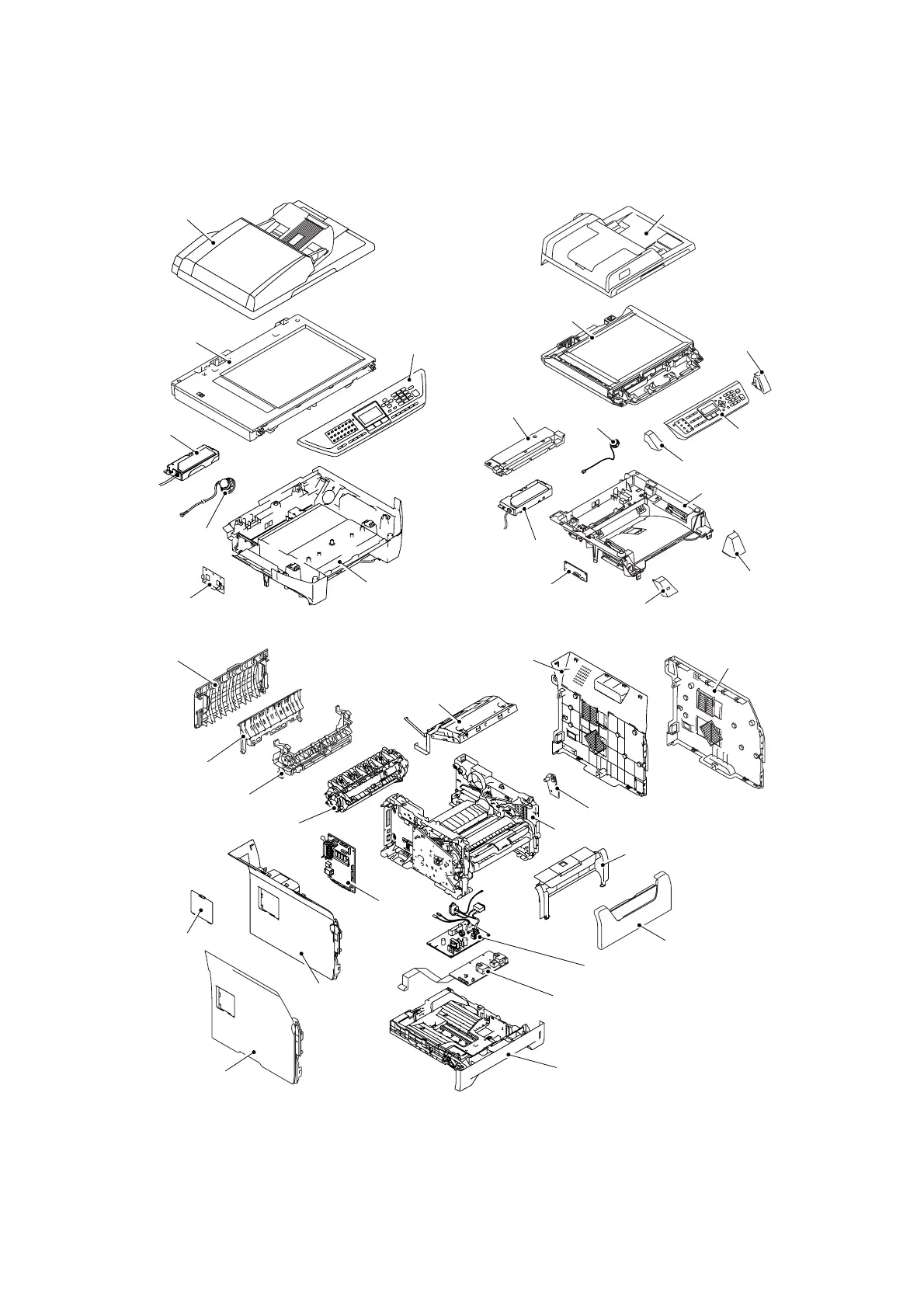

Fig. 3-1
Driver PCB
Driver PCB
Joint Cover ASSY
Joint Cover ASSY
Joint Cover FR
Joint Cover FL
NCU PCB
NCU PCB
NCU Cover
Scanner Unit
Scanner Unit
Scanner Dress Cover L
Scanner
Dress Cover R
ADF Unit
ADF Unit
< CIS model >< CCD model >
Panel Unit
Panel Unit
Speaker ASSY
Speaker ASSY
Back Cover
Outer Chute ASSY
Rear Chute ASSY
Fuser Unit
Main PCB
Access Cover
Side Cover L
(CCD model)
Side Cover L
(CIS model)
Side Cover R
(CCD model)
Side Cover R
(CIS model)
Laser Unit
Toner LED PCB Unit ASSY
Paper Tray
High-voltage PS PCB
LVPS PCB
MP Tray Cover ASSY
Process Cover ASSY
Frame Unit
