9.10 Scanner Unit ASSY
■ CCD model
9.10.1 Scanner Unit ASSY
(1) Disconnect the connector of the Scanner motor harness from the Driver PCB.
(2) Disconnect the connector of the Home position sensor harness and FFC cable from the
Main PCB.

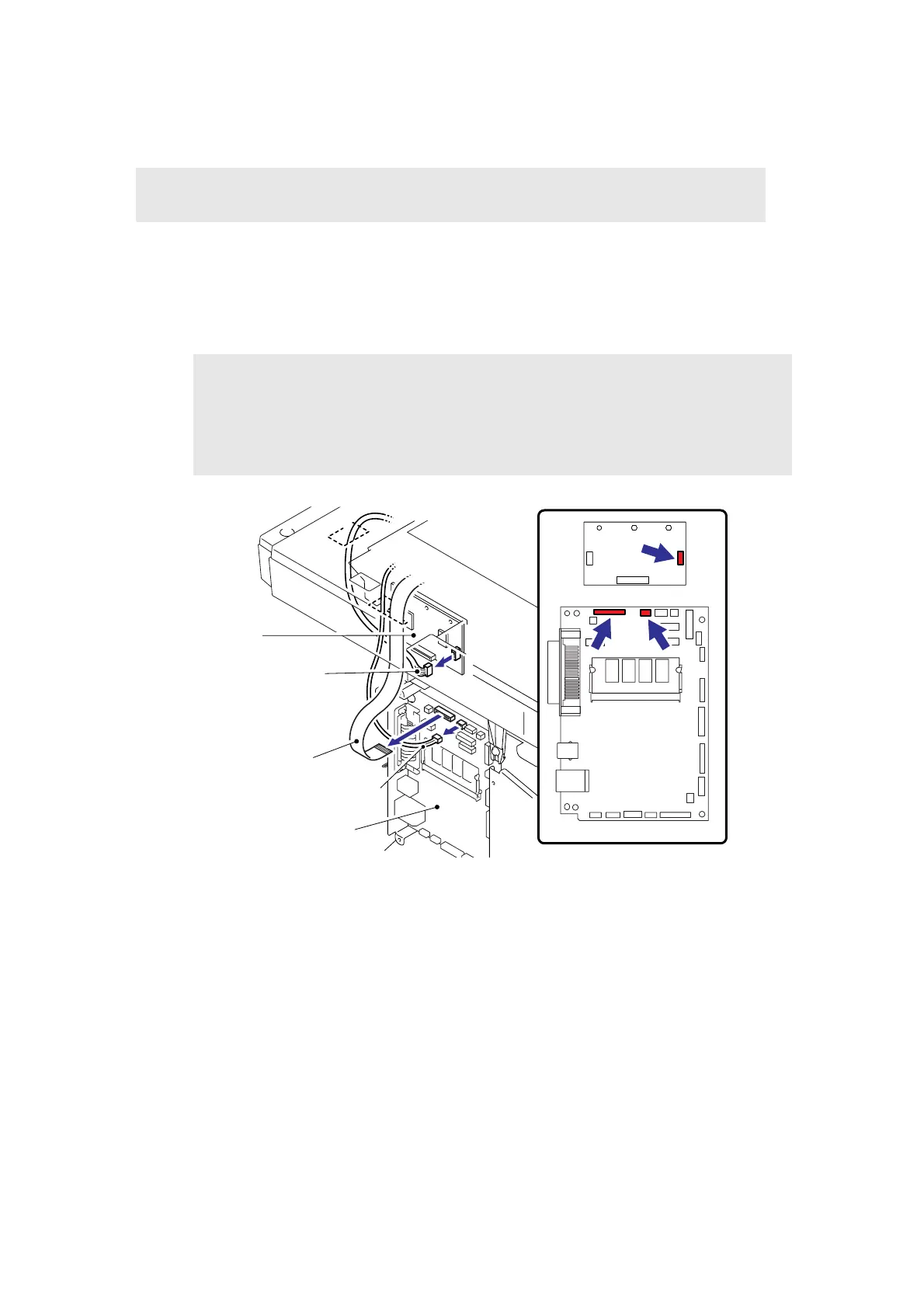

Fig. 5-148
Note:
• In the case of the CIS model, refer to "9.10.9 Scanner Unit" .
Note:
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cable(s), do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Driver PCB
Driver PCB
Scanner motor harness
Main PCB
Main PCB
FFC cable
Home position sensor harness
