9.8.23 Pressure Roller / LF Spring
(1) Push the Hook to the direction of the arrow (1a) as shown in the figure below while
holding the Pressure roller, and remove the Pressure roller shaft from the hook.
(2) Pull the Pressure roller shaft out of the Pressure roller.
(3) Remove the two LF springs.

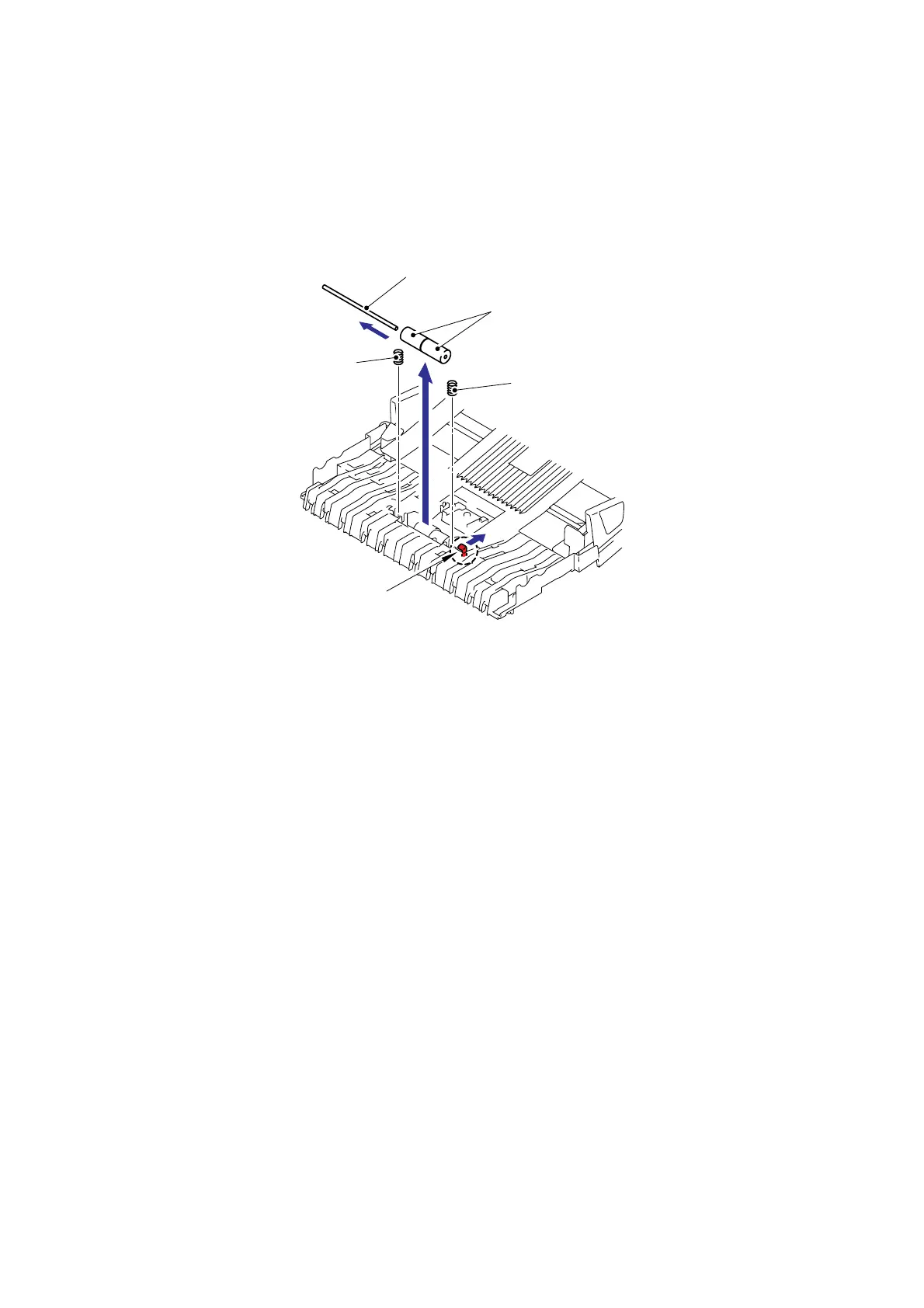

Fig. 5-73
Pressure roller shaft
Pressure rollers
LF spring
LF spring
Hook
2
1a
1b
