Brother MFC-8380DN - ADF Cover Open Sensor Holder

5-124
Confidential
9.8.65 ADF Cover Open Sensor Holder

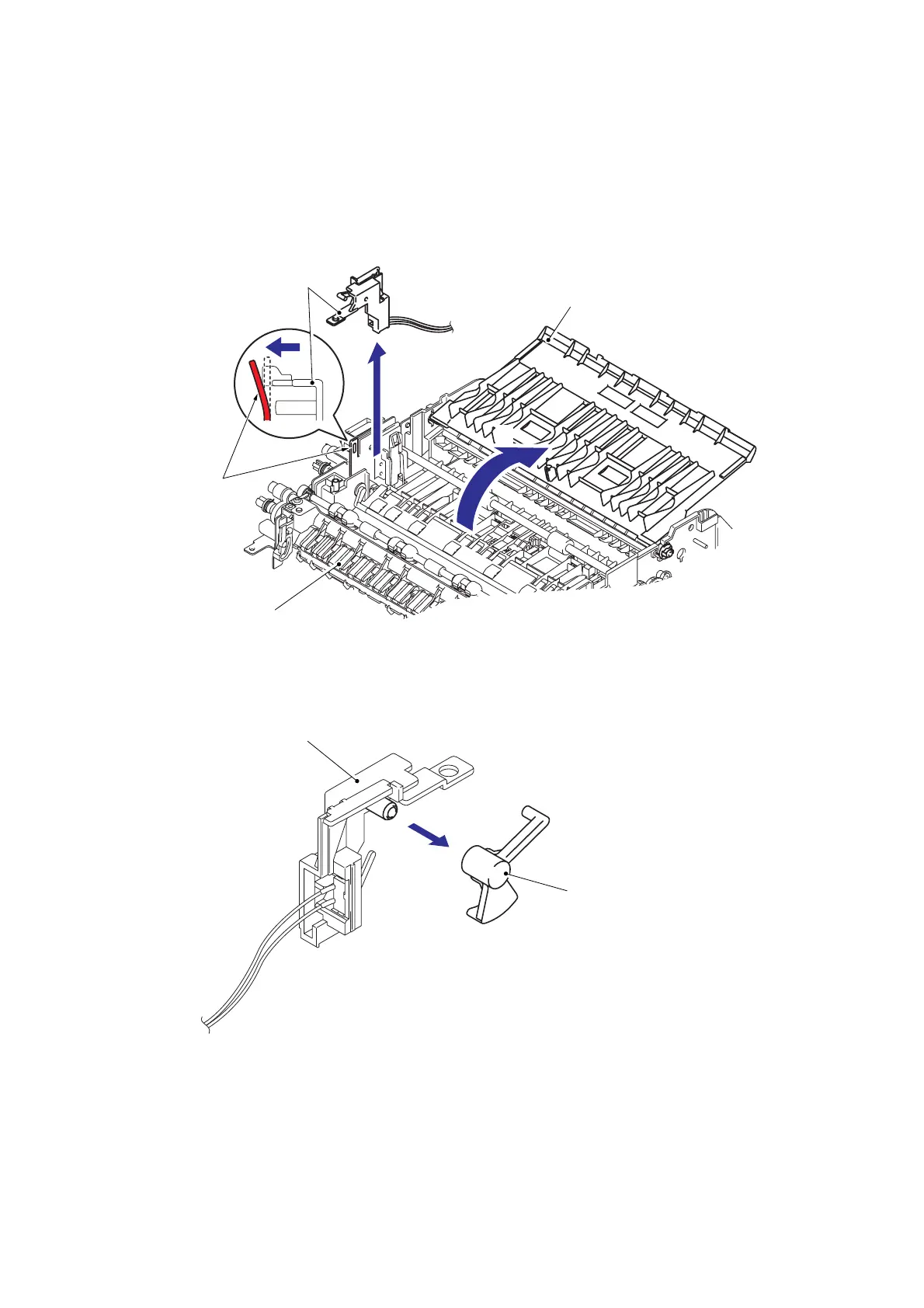

(1) Turn the ADF chute ASSY upside down.
(2) Open the Ejection flap.
(3) Release the Hook, and remove the ADF cover open sensor holder from the ADF chute
ASSY.
Fig. 5-135
(4) Remove the ADF cover open sensor arm from the ADF cover open sensor holder.
Fig. 5-136
ADF cover open sensor holder
Hook
ADF chute ASSY
Ejection flap
22
ADF cover open sensor holder
ADF cover open sensor arm
