Brother MFC-8380DN - ADF Unit; CIS Model

5-95
Confidential
■ CIS model
9.8.38 ADF Unit

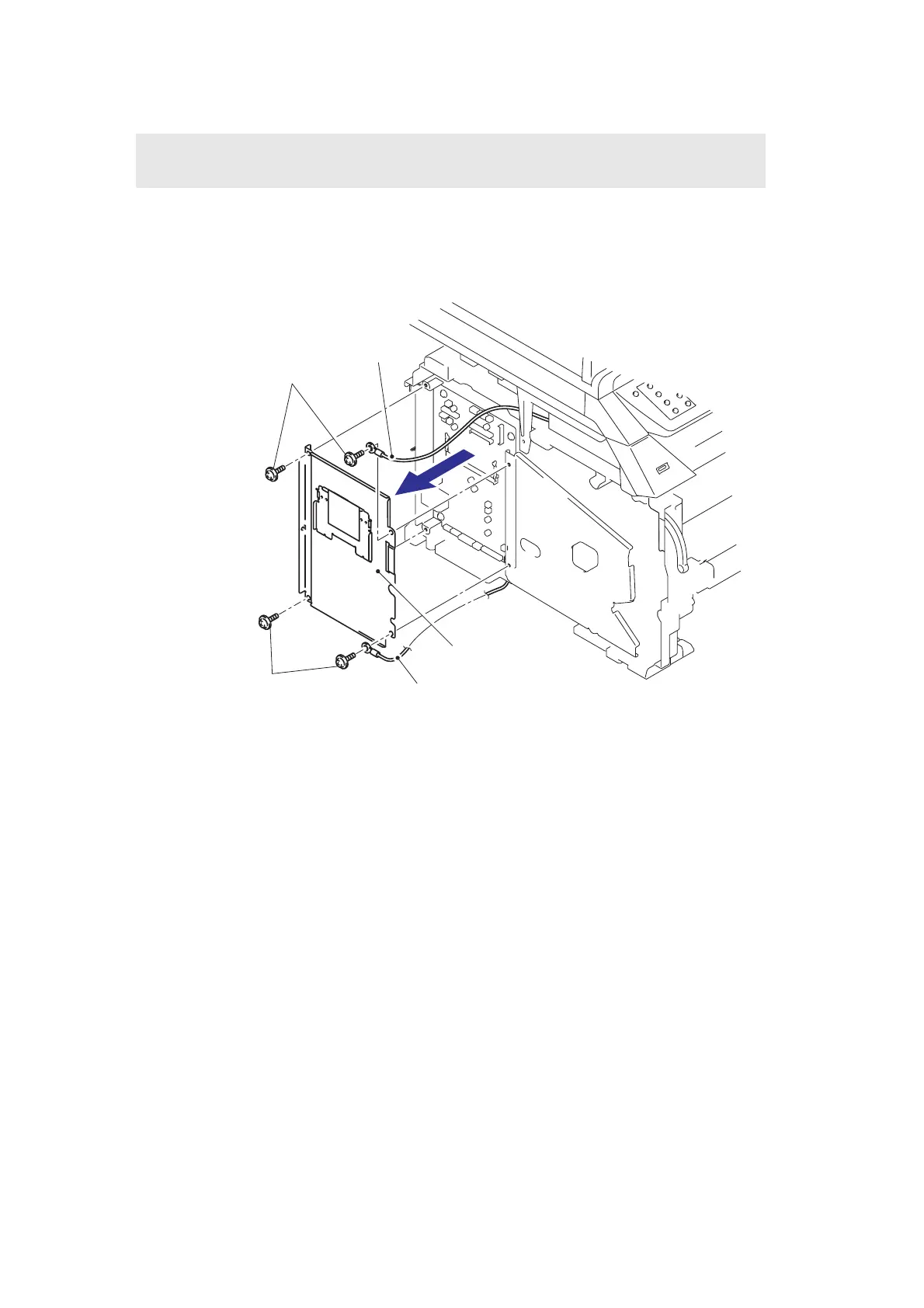

(1) Remove the four cup S M3x6SR Taptite screws, remove the two FG harnesses and then
remove the Shield cover ASSY.
Fig. 5-98
Note:
• In the case of the CCD model, refer to "9.8.1 ADF Unit" to "9.8.37 Pressure Roller".
Taptite cup S M3x6SR
Taptite cup S M3x6SR
FG harness
FG harness
Shield cover ASSY
