Brother MFC-8380DN - CIS Model; Driver PCB

5-167
Confidential
■ CIS model

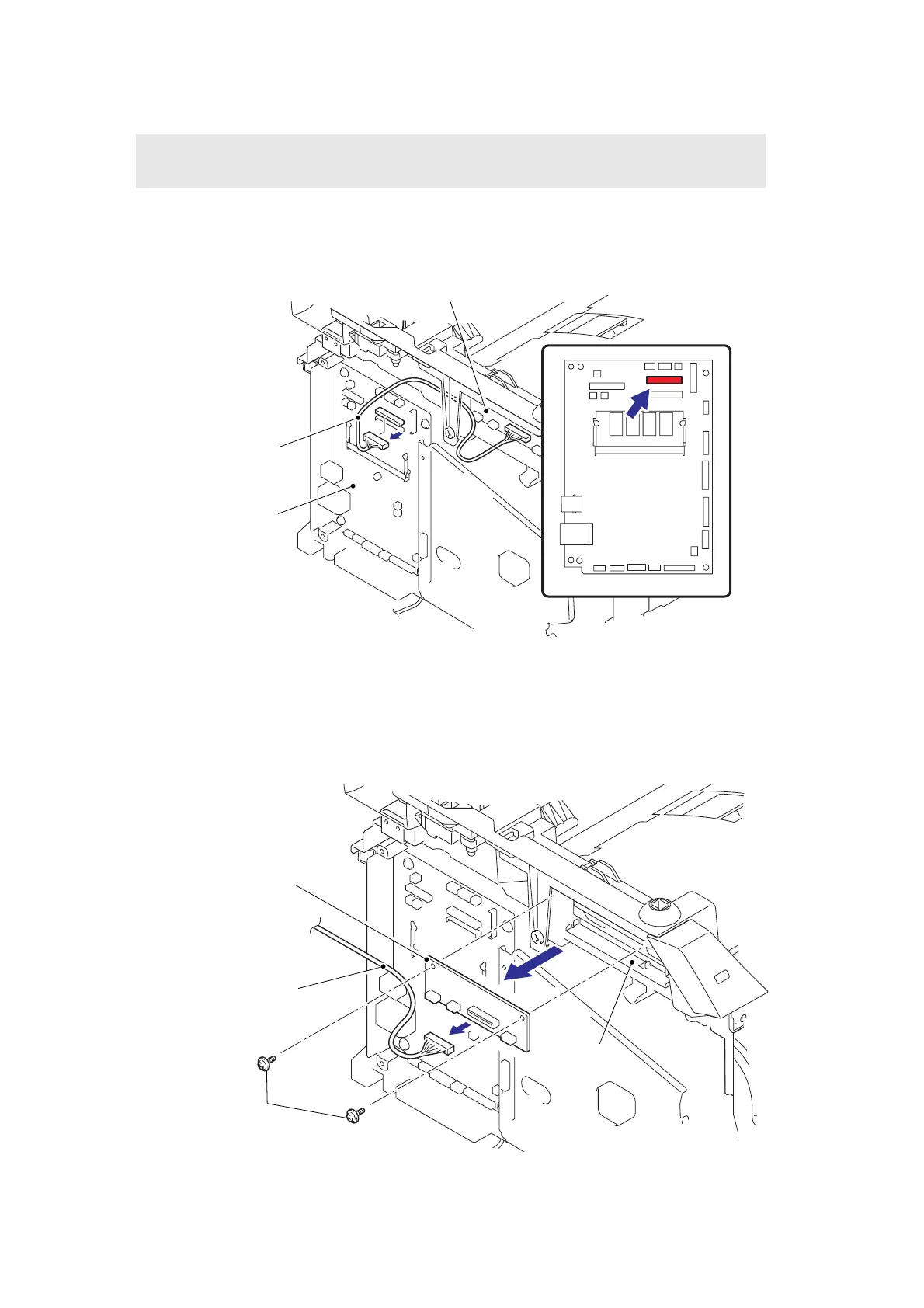

9.14.2 Driver PCB
(1) Disconnect the Connector of the Driver harness from the Main PCB.
Fig. 5-194
(2) Remove the two cup S M3x6SR Taptite screws, and remove the Driver PCB from the
Driver PCB holder.
(3) Disconnect the Connector of the Driver harness from the Driver PCB.
Fig. 5-195
Note:
• In the case of the CCD model, refer to "9.14.1 Driver PCB".
Driver PCB
Driver harness
Main PCB
Main PCB
<Left side>
Taptite cup S M3x6SR
Driver PCB
Driver PCB
holder
<Left side>
Driver harness
