Brother MFC-8380DN - Document Front Actuator 1

5-78
Confidential
9.8.20 Document Front Actuator 1 / Document Front Sensor 1
(For the models with the DX only)

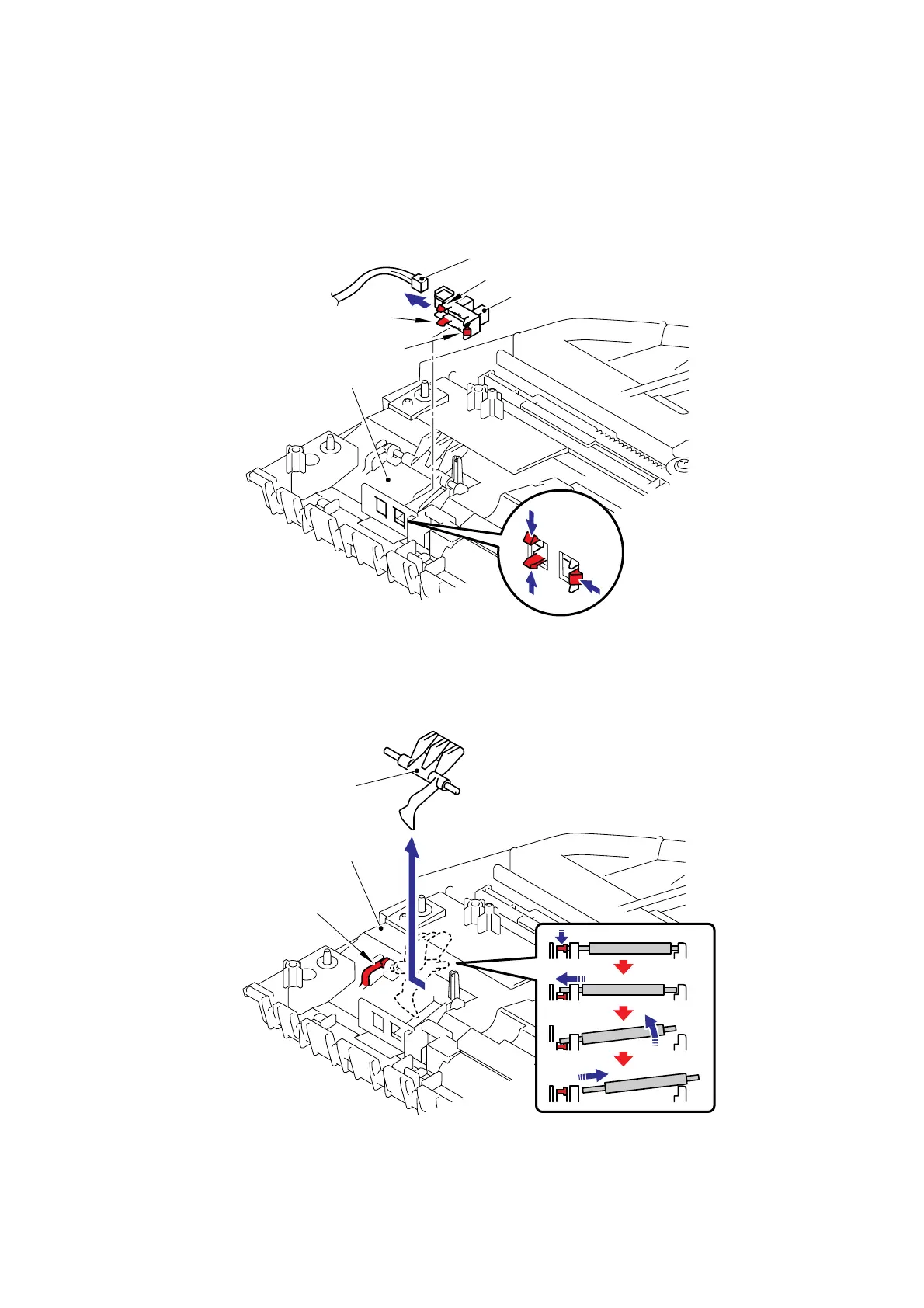

(1) Turn the Paper feed chute ASSY upside down. Release the Hooks of the Document
front sensor 1 to remove the Document front sensor 1 from the Paper feed chute ASSY.
(2) Disconnect the Connector from the Document front sensor 1.
Fig. 5-68
(3) Push down the Stopper, slide the Document front actuator 1 to the stopper side and pull
up the Document front actuator 1 to remove.
Fig. 5-69
Connector
Hook
Hook
Hook
Paper feed chute ASSY
Document front sensor 1
Document front actuator 1
Paper feed chute ASSY
Stopper
