Brother MFC-8380DN Service Manual

3-61
Confidential

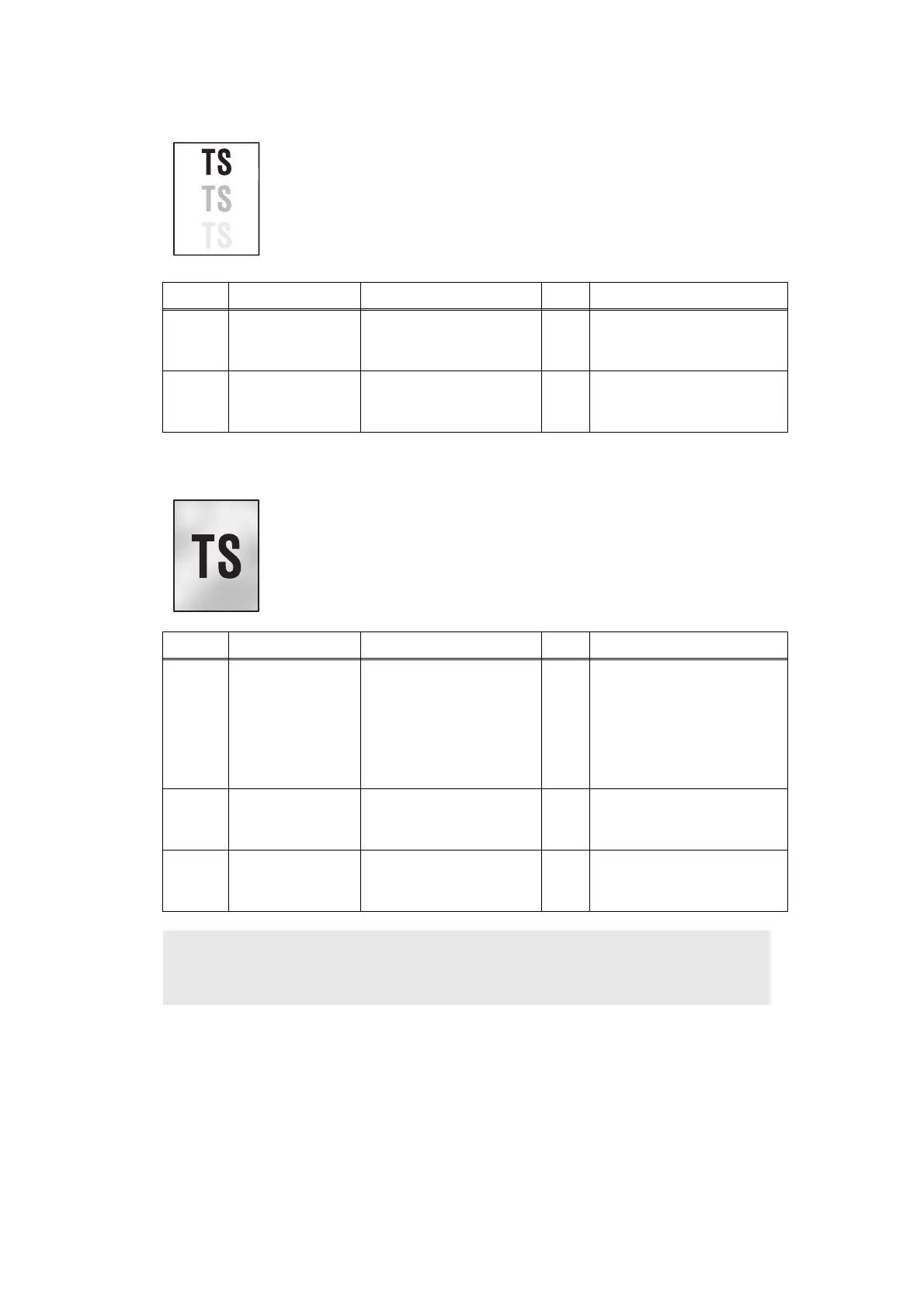

■ Ghost
■ Fogging
<User Check>
- Check the machine's environment, conditions such as high or low
humidity may cause this situation to occur.
- Check that the appropriate media type or size is selected in the
printer driver.
- Replace the drum unit with a new one.
Step Cause Check
Result Remedy
1
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
2
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
<User Check>
- Replace the toner cartridge with a new one.
- Replace the drum unit with a new one.
- Do not use acid paper.
- Check if there is dust or paper powder in the machine.
Step Cause Check
Result Remedy
1
Toner sensor
failure (Machine
body)
Is the toner sensor
performed normally by
following the procedure
in "4.10 Sensor
Operational Check
(Function code 32)" in
Chapter 7.
No
Replace the toner sensor
PCB unit ASSY and the
toner LED PCB ASSY.
2
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
3
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
CAUTION :
• This problem often occurs when the drum unit or toner cartridge is nearly at the end
of life.

Brother MFC-8380DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	e-mail, FTP, OCR, USB
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	4, 9, 16, 25
Copy speed (black, normal quality, A4)	30 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	500 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Internal memory	64 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	LCD
Market positioning	Home & office
Custom media sizes	(69.8 - 216) x (116 - 406.4) mm
Dimensions (WxDxH)	531 x 451 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Fax, Scan
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Linux, Windows 2000, XP/2003, Vista, XP, Mac OS X 10.3.9
Maximum print size	216 x 297 mm
Media weight (tray 1)	60 - 105 gsm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4, IPv6
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	85 W
Power consumption (PowerSave)	19 W
Power consumption (average operating)	680 W
Package weight	21100 g
