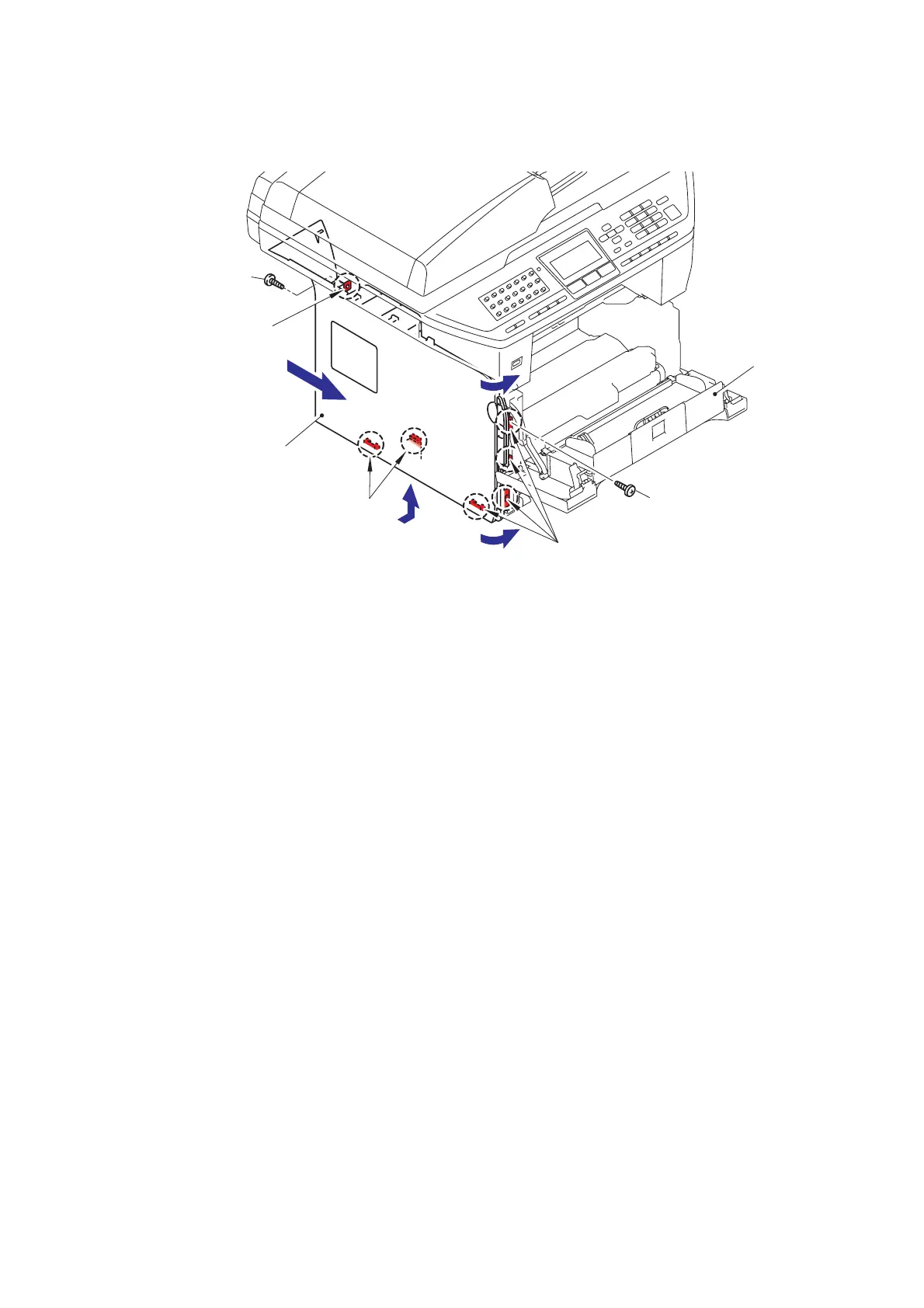

(22) Catch the Hooks in the order of the arrows and secure the Side cover L with the two bind
B M4x12 Taptite screws.
Fig. 4-36
22d
22c
22a
22b
Taptite bind B M4x12
Taptite bind B M4x12
Front cover
Hooks
Hooks
Hook
Side cover L
