4-53
Confidential

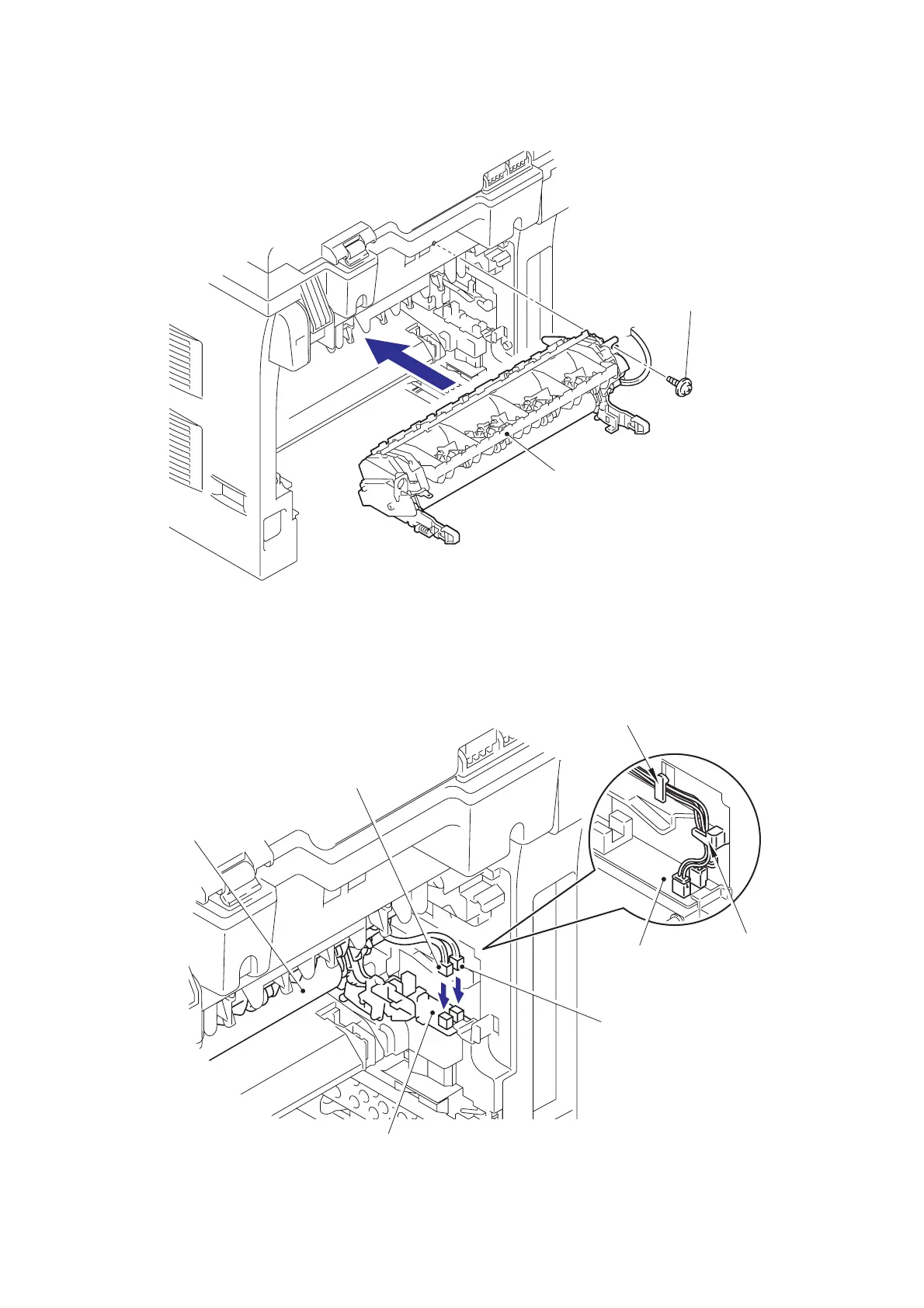

(25) Secure the Fuser unit with the pan B M4x20 Taptite screw.
Fig. 4-82
(26) Connect the connectors of the Thermistor ASSY M and Thermistor ASSY S onto the
Relay rear PCB ASSY.
Fig. 4-83
Taptite pan B M4x20
Fuser unit
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Relay rear PCB ASSY
Relay rear PCB ASSY
Hook
Hook
