5-48
Confidential

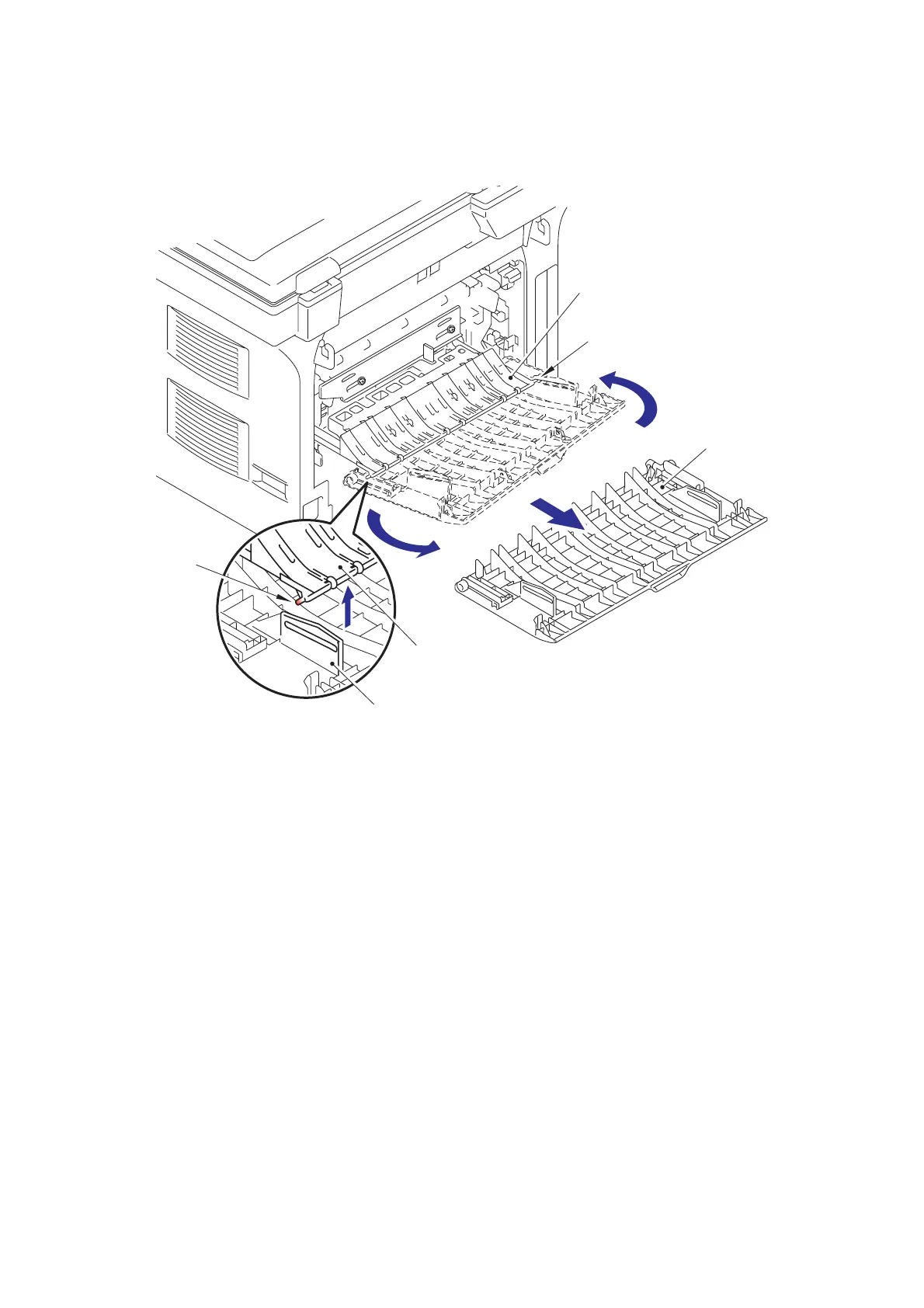

(3) Remove the Pins of the Outer chute ASSY from the Back cover.
(4) Remove the Back cover.
Fig. 5-15
3a
3a
3b
4
Pin
Pin
Back cover
Back cover
Outer chute ASSY
Outer chute ASSY
3b
