(6) Remove the cup B M4x10 Taptite screw, and then remove the Process cover stopper.

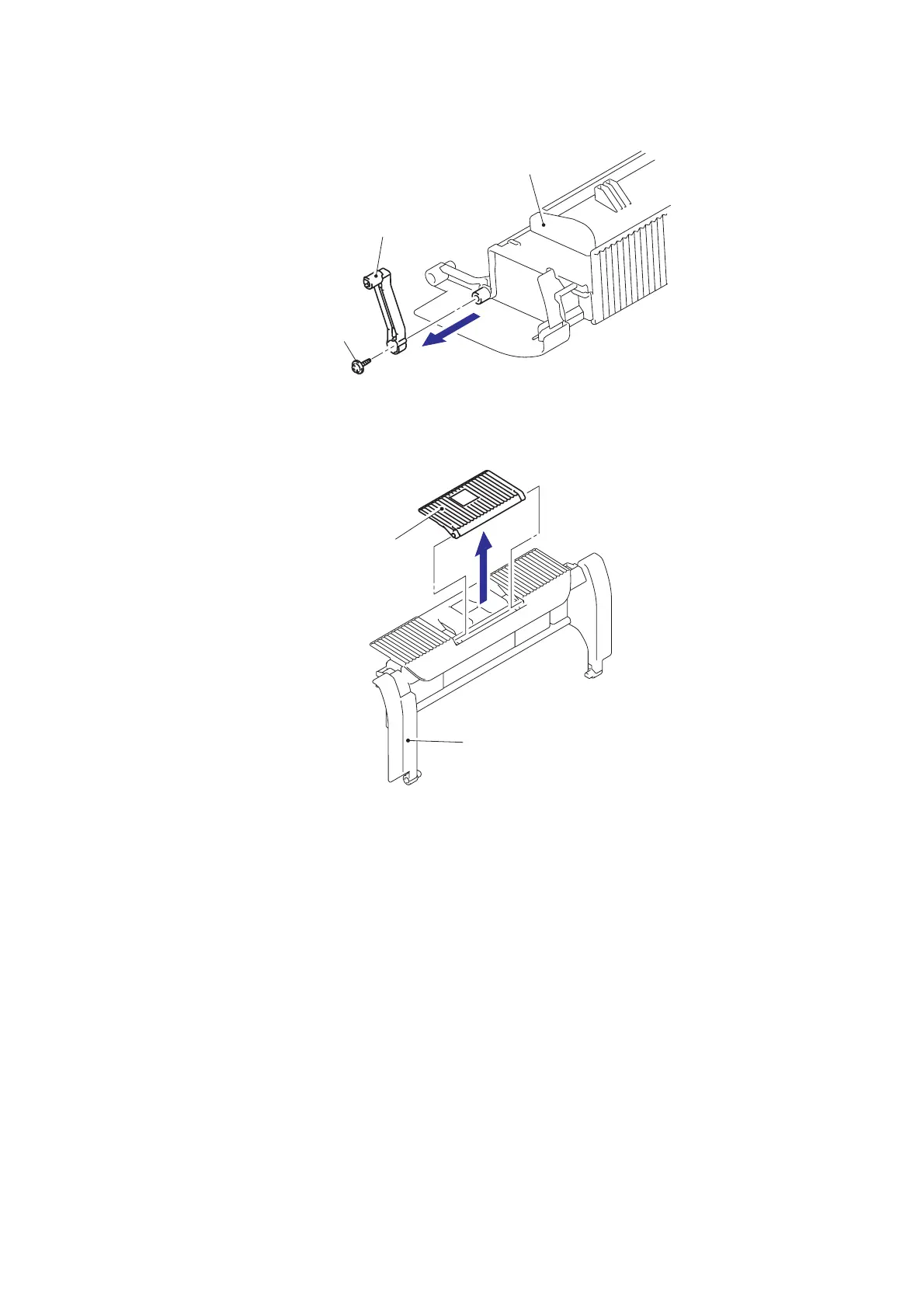

Fig. 5-31
(7) Remove the Support flap 1 from the Process cover.
Fig. 5-32
Process cover
Process cover stopper
Taptite, cup B M4x10
Support flap 1
Process cover
