Brother MFC-8380DN Service Manual

5-204
Confidential

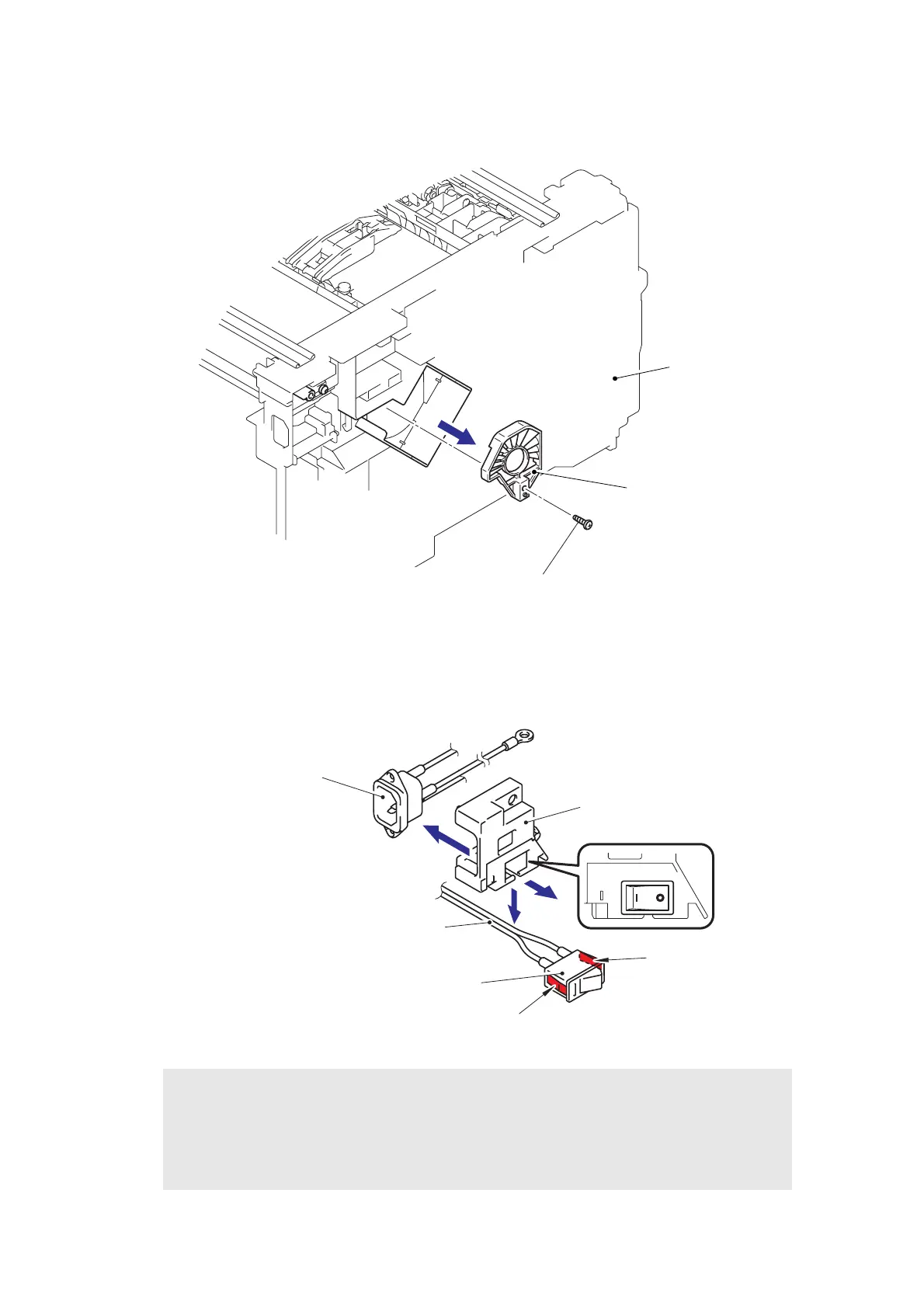

(8) Remove the bind B M3x10 Taptite screw, and remove the Safety louver.
Fig. 5-250
(9) Remove the Inlet harness ASSY from the SW holder.
(10) Press the Hooks on both sides of the Power supply switch, pull out the Power supply
switch to the direction of 10a and pull the wire out of the groove on the SW holder.
Fig. 5-251
Assembling Note:
• When assembling the power supply switch onto the SW holder, give attention to the
direction of the switch.
• Align the “ I ” of the power supply switch with the “ I ” of the SW holder to attach the
power supply switch
Safety louver
Frame R
Taptite, bind B M3x10
Inlet harness ASSY
Power supply switch
Wire
Hook
Hook
SW holder
9
10b
10a
