Technical Data and Installation
- 2.2 - SMART KTF 2000
SMART KTF 2000 – KTF/100HP Connection

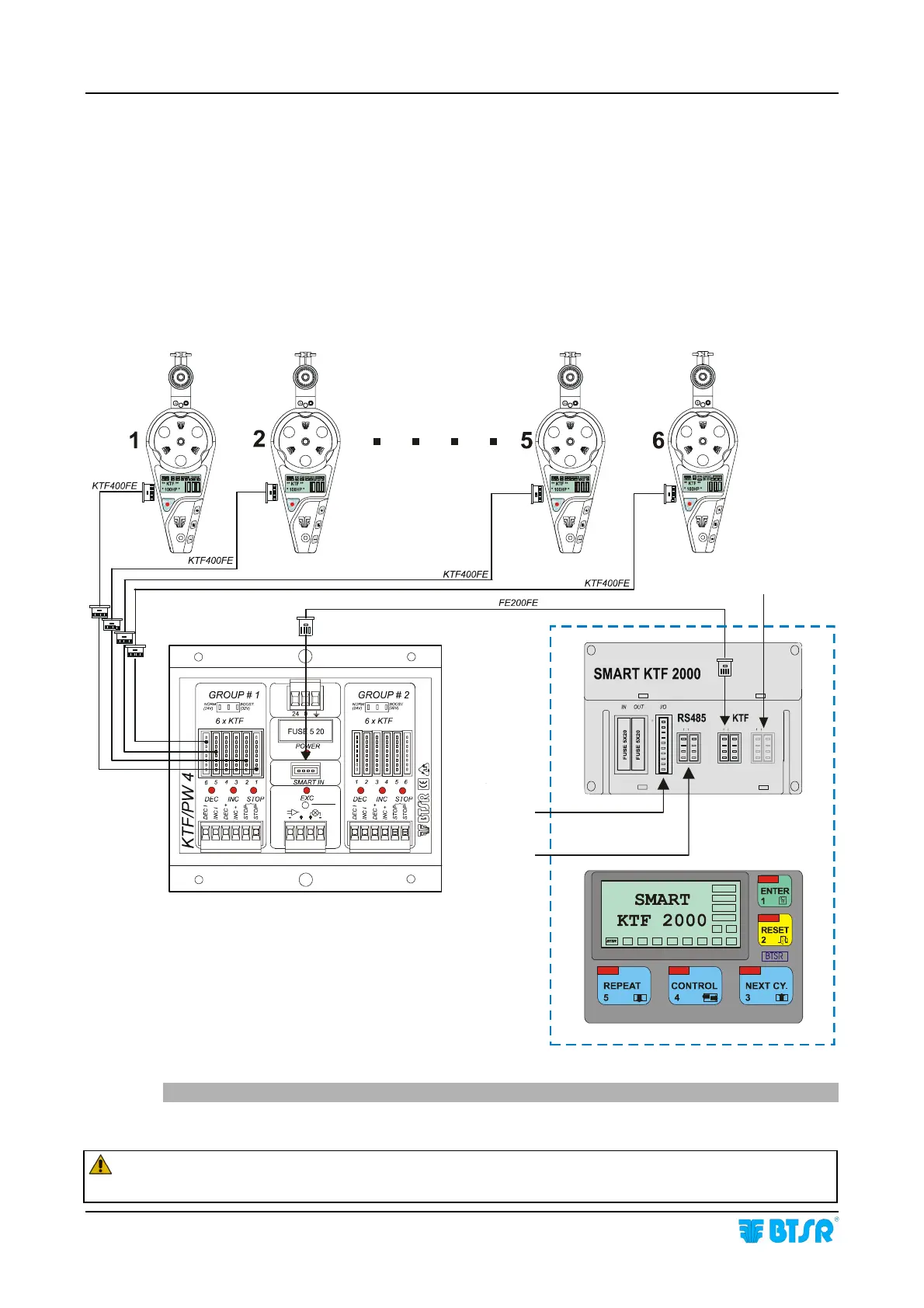

Connection Example of a complete system including KTF/100HP devices, KTF PW4 power supply and SMART
KTF 2000 terminal
As described on Technical Data and Installation Chapter of KTF/100HP Operating
Manual, the installation of KTF devices mainly depends on the electrical supply of the
devices themselves.
 Electrical supply provided by BTSR KTF/PW4 power supply;
 Electrical supply provided by external power supply through a flat cable.
 For further details, please refer to KTF/100HP operating manual
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
Machine
Interface
Used for
LINK
function
Not Used
