SMART KTF 2000 Terminal Features
As in all SMART BTSR systems, the operation of SMART KTF 2000 system is
controlled by just 5 membrane buttons and it is monitored by a LCD graphic
display, which guides the operator through all programming and administration
phases of the system, by means of straight-forward messages which can be
understood clearly and immediately.
On the top left side of each button there is a red LED, which indicates that the
button is pressed down.
The display screen includes two separate zones used respectively for displaying
messages to the operator

during the system programming and administration
phases and for signaling the operating status and levels in which the system is
working

.

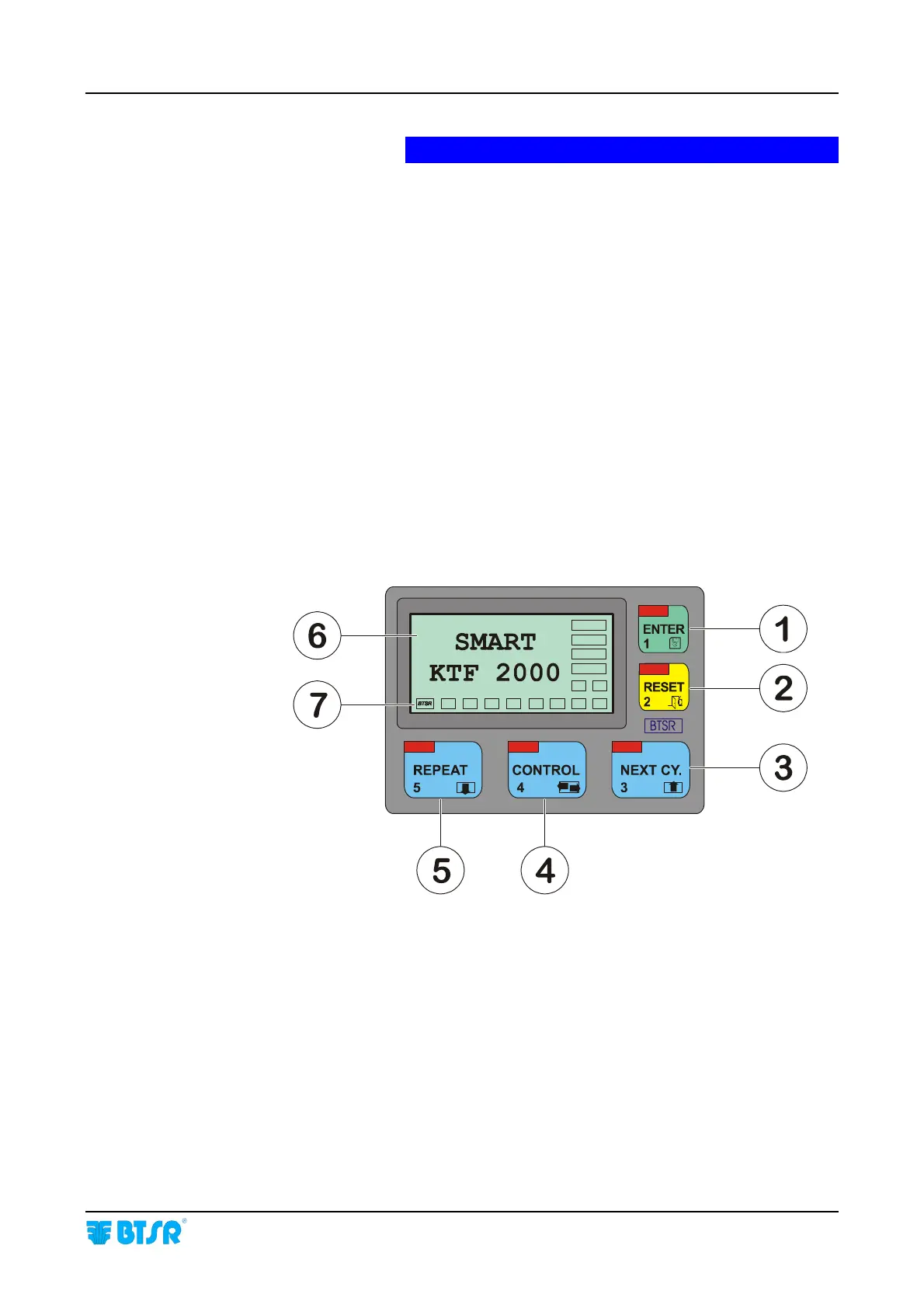

The following picture shows the location of the buttons and display zones that
constitute the control panel of the SMART KTF 2000 system.
