SMART KTF 2000 – KTF/100HP Operation
3A-42 SMART KTF 2000
IstLFA - Graphic histogram of the Amount of Yarn Fed
(LFA)
MEASUR
IstLFA

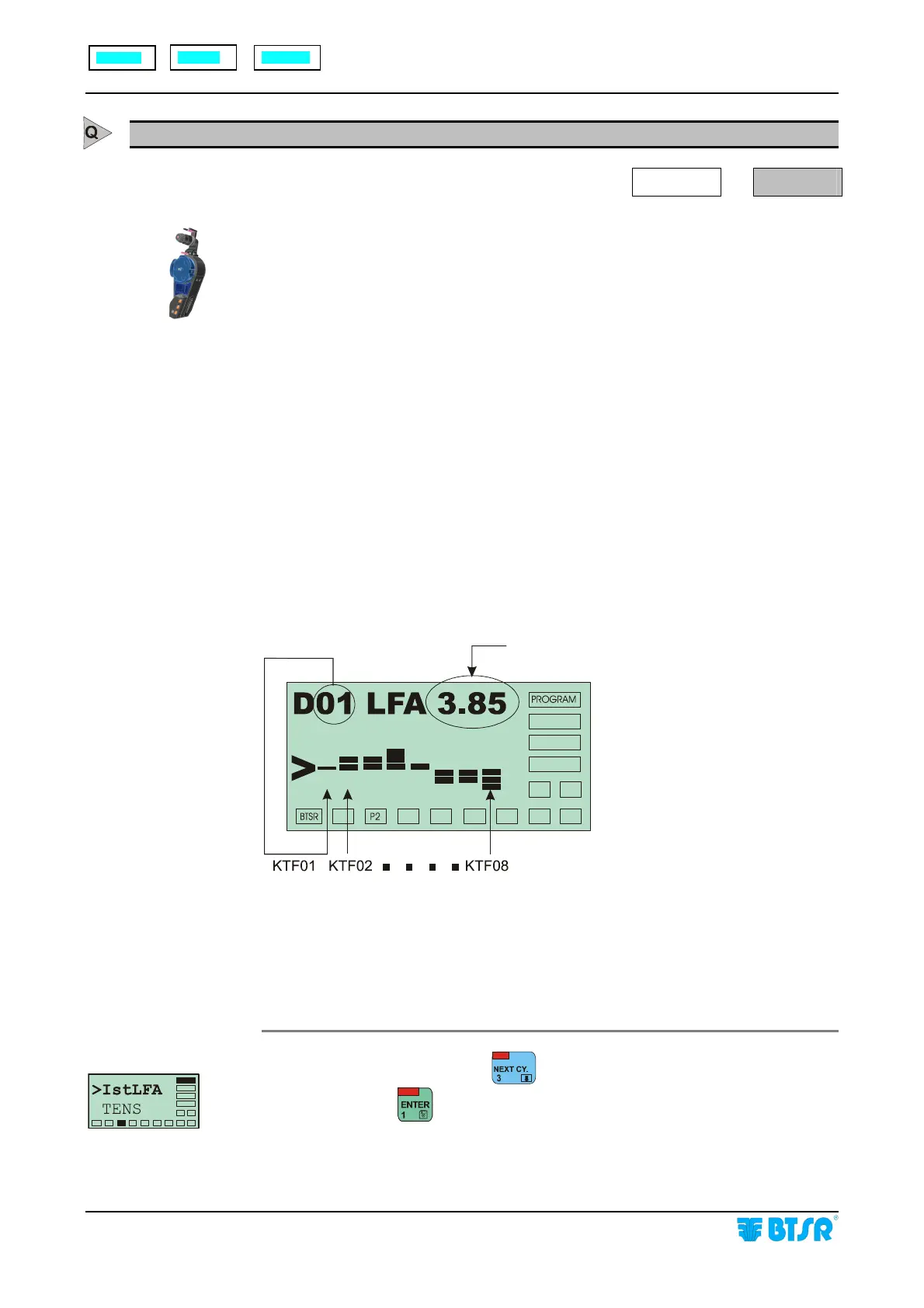

This function shows an histogram on SMART KTF 2000 display, which allows you
to compare in real time the amount of yarn fed (LFA) by a given number of
connected KTF/100HP devices, with respect to a reference device.
You can choose a percentage resolution RES % (up to 10 %) used to graphically
represent the variation of yarn fed by the selected KTF devices, with respect to the
amount of yarn fed by the reference KTF. In addition, you can choose the number
of KTF devices to be included in the histogram (either 8, 12 or 16, including the
reference KTF).
Thanks to the indications provided by this graphic, you will have the possibility to
adjust the various machine drops, so that they show the same feeding value (this is
the condition needed to obtain a perfect fabric). In particular, once you have
adjusted the cam of KTF01 so as to obtain the desired feeding value (LFA m/min),
you will check that all the other KTF devices feed the same amount of yarn and, if
necessary, you will provide the required adjustments.
Example:
Comparison among 8 KTF/100HP devices (KTF01 KTF08)
Reference device: KTF01 (selectable using NEXT CY. – REPEAT)
RES%: 5.0 (selectable using NEXT CY. - REPEAT)
BAR: 8 (selectable using CONTROL)
KTF01 (Reference) : LFA 3.85 m/min
KTF02 : LFA 4.23 m/min (KTF01 + 10%)
.
.
.
KTF08 : LFA 3.27 m/min (KTF01 – 15%)
From the MEASUR menu, press
until the >IstLFA menu option is selected.
At this point, press
to access the function.
BOD
-S
SOCKS
C-KNIT
Length of yarn fed for each
machine cylinder/rev.
RES% 5.0
BAR 8
